PTGNR 4040 S 27
PTGNR 4040 S 27
PTGNR 4040 S 27

PTGNR 4040 S 27

UGC DOR8268920
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

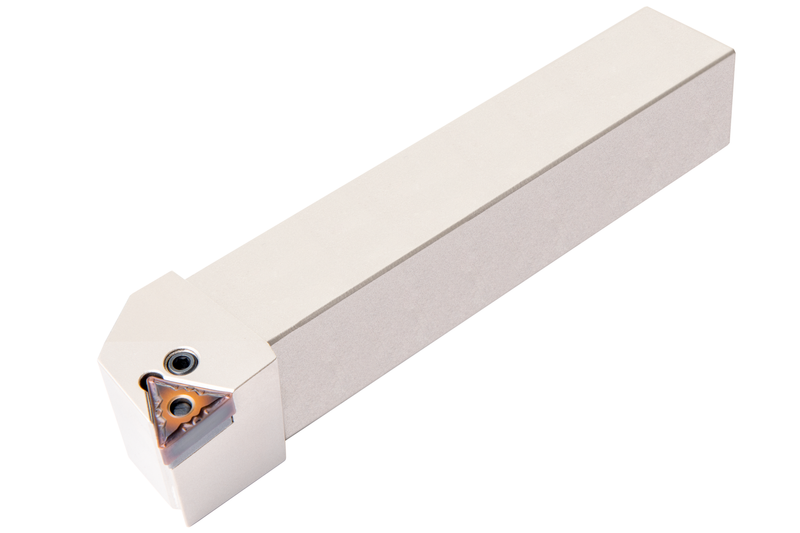

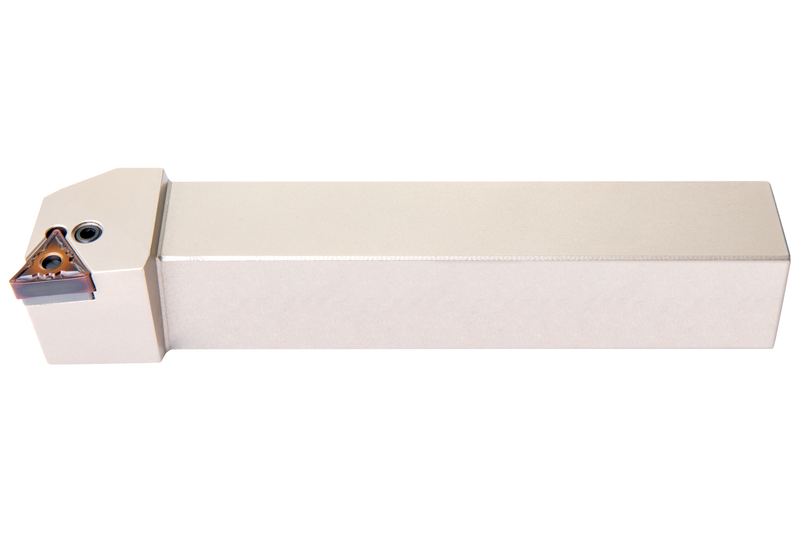

Outil de tournage à levier pour le maintien d'un insert négatif triangulaire avec un diamètre de cercle inscrit de 15,875mm, 6,35mm d'épaisseur (désignation ISO TN.. 2706..), coupe à droite 90° avec queue déportée, hauteur d'outil 40mm x largeur 40mm x longueur 250mm pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PTGNR 4040 S 27
Product Number8268920
Product FamilyPTGN(RL) EXT

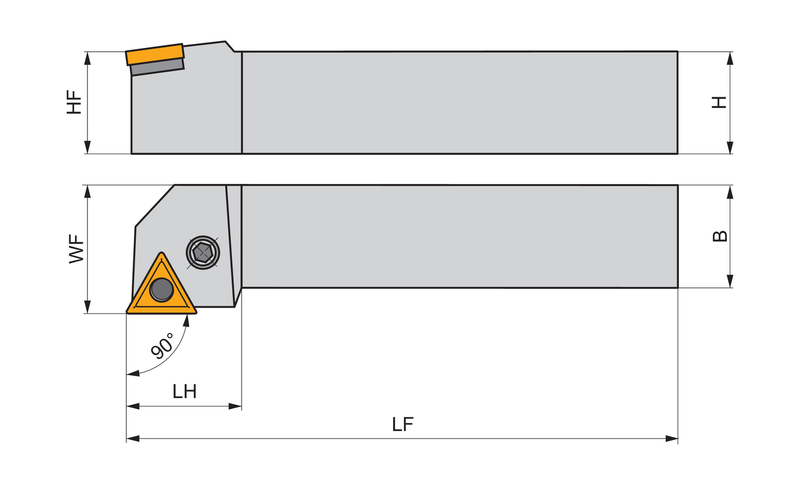

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8268920
EAN3603604040549
File Type Download
PTGNR 4040 S 27 — 3D Model STP Download
PTGNR 4040 S 27 — 2D Model DXF Download
PTGNR 4040 S 27 — Line Drawing PDF Download
