PRSCL 4040 S 16
PRSCL 4040 S 16
PRSCL 4040 S 16

PRSCL 4040 S 16

UGC DOR8281354
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

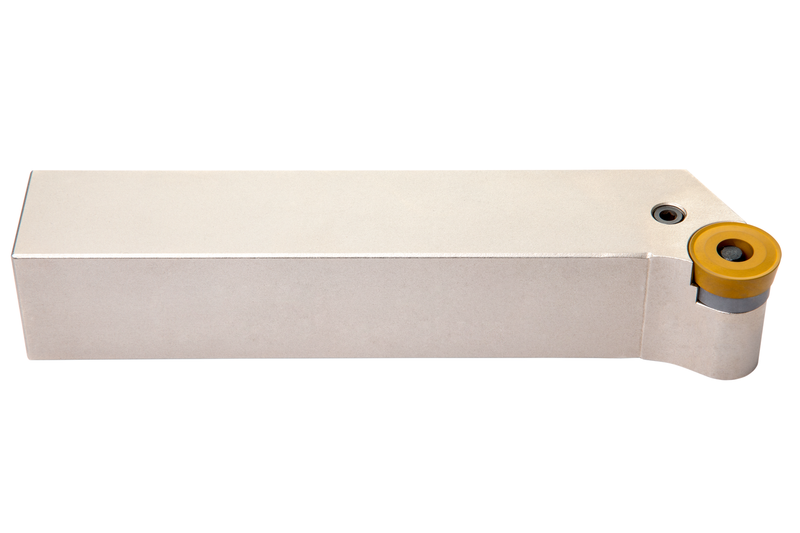

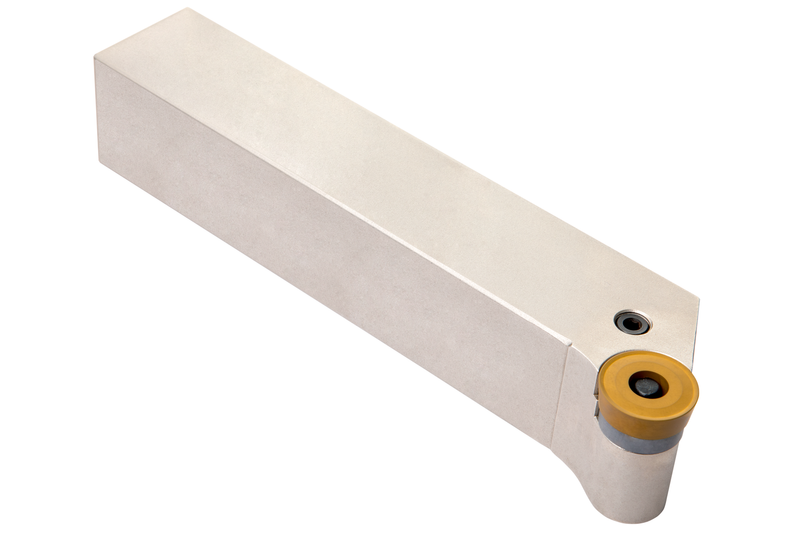

Outil de tournage à levier pour plaquette positive ronde de 16 mm de diamètre et 6,35 mm d'épaisseur (désignation ISO RCMX 1606MO), coupe à gauche avec corps déporté, hauteur d'outil 40 mm x largeur 40 mm x longueur 250 mm pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PRSCL 4040 S 16
Product Number8281354
Product FamilyPRSC(RL) EXT

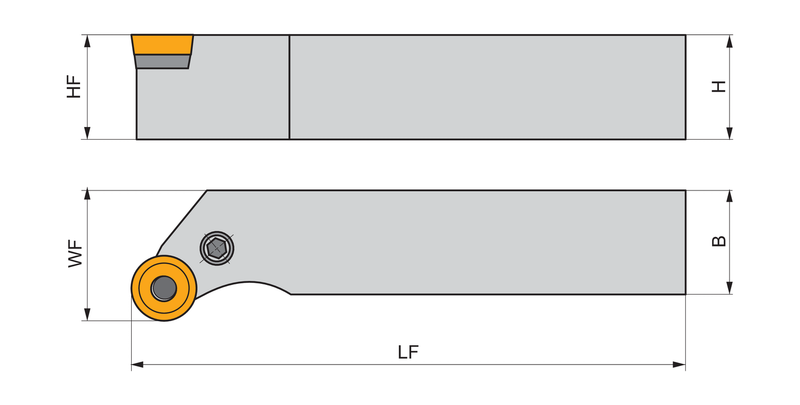

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8281354
EAN3603604052108
File Type Download
PRSCL 4040 S 16 — 3D Model STP Download
PRSCL 4040 S 16 — 2D Model DXF Download
PRSCL 4040 S 16 — Line Drawing PDF Download
