PRSCR 4040 S 16
PRSCR 4040 S 16
PRSCR 4040 S 16

PRSCR 4040 S 16

UGC DOR8281355
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

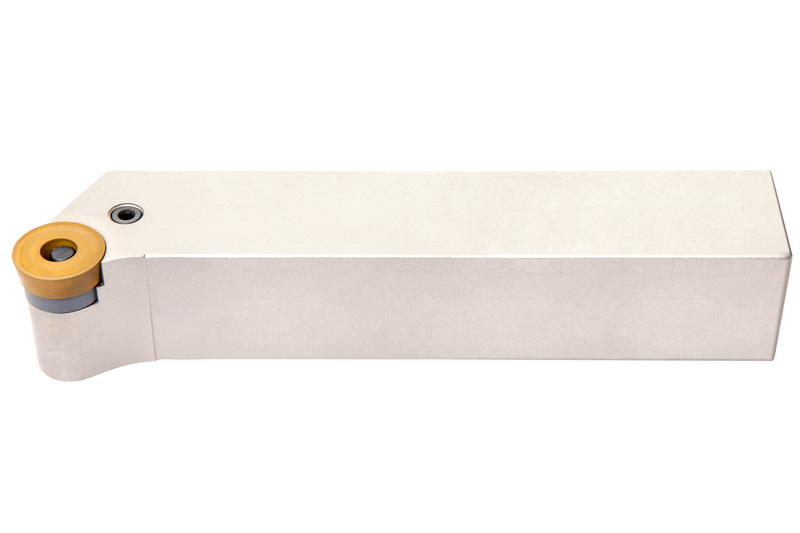

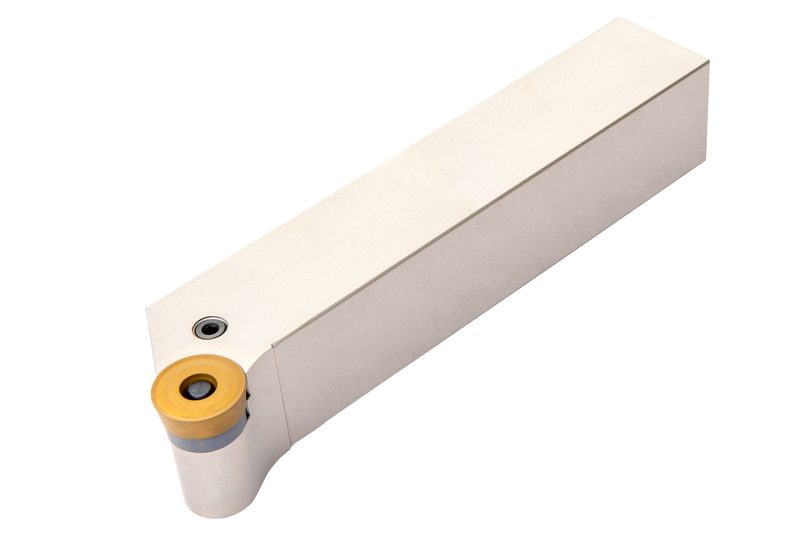

Outil de tournage à levier pour la fixation d'un insert positif rond d'un diamètre de 16 mm, épaisseur 6,35 mm (désignation ISO RCMX 1606MO), coupe à droite avec queue déportée, hauteur d'outil 40 mm x largeur 40 mm x longueur 250 mm pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel, le dressage sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PRSCR 4040 S 16
Product Number8281355
Product FamilyPRSC(RL) EXT

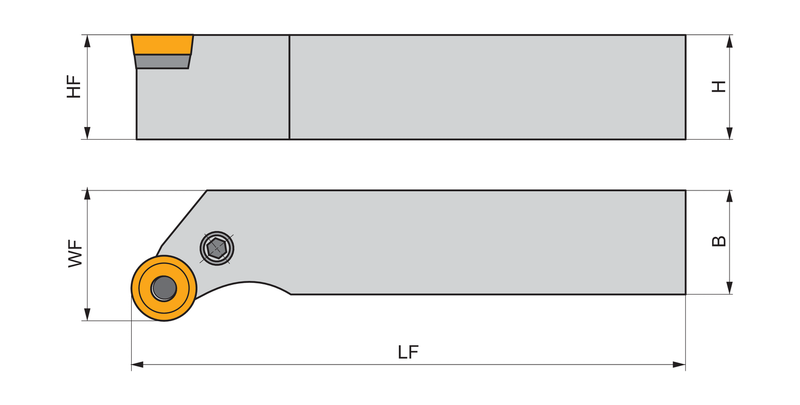

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8281355
EAN3603604052115
File Type Download
PRSCR 4040 S 16 — 3D Model STP Download
PRSCR 4040 S 16 — 2D Model DXF Download
PRSCR 4040 S 16 — Line Drawing PDF Download
