PSSNR 4040 S 19
PSSNR 4040 S 19
PSSNR 4040 S 19

PSSNR 4040 S 19

UGC DOR8281405
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

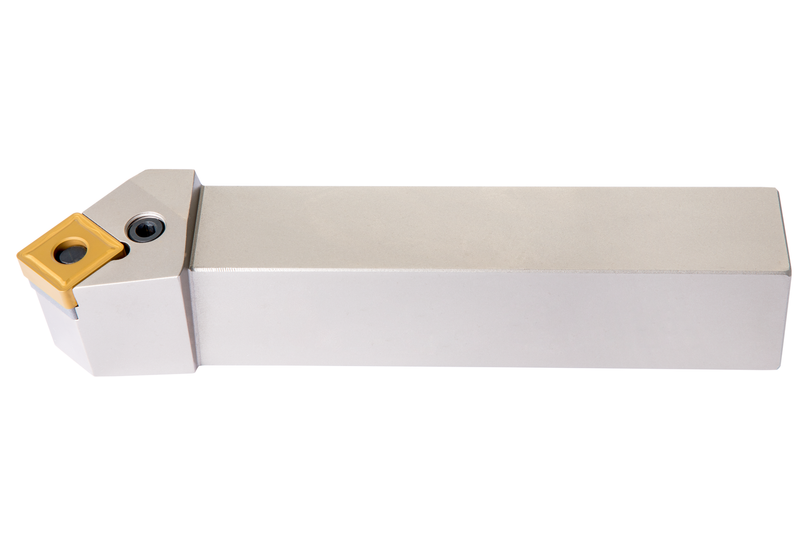

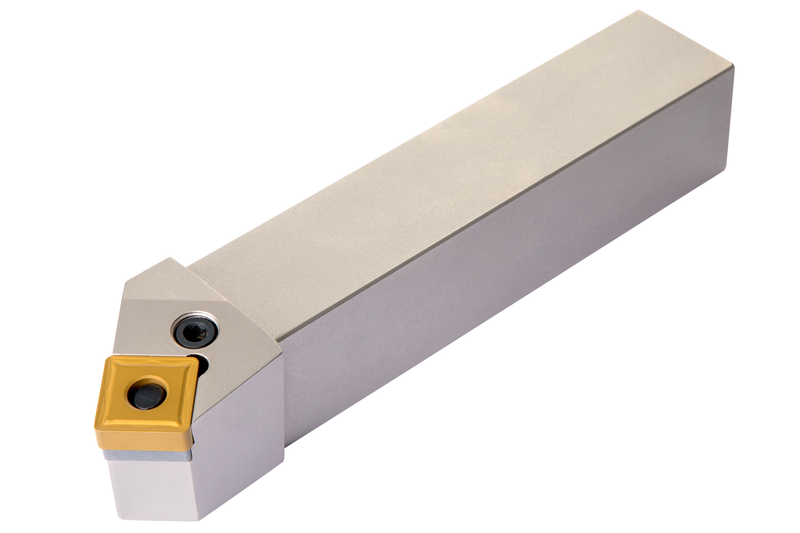

Outil à levier pour le maintien d'un insert carré négatif avec un diamètre de cercle inscrit de 19,05 mm, 6,35 mm d'épaisseur (désignation ISO SN.. 1906.. ), coupe latérale droite à 45° avec un corps déporté, hauteur d'outil de 40 mm x largeur de 40 mm x longueur de 250 mm pour le chanfreinage, le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSSNR 4040 S 19
Product Number8281405
Product FamilyPSSN(RL) EXT

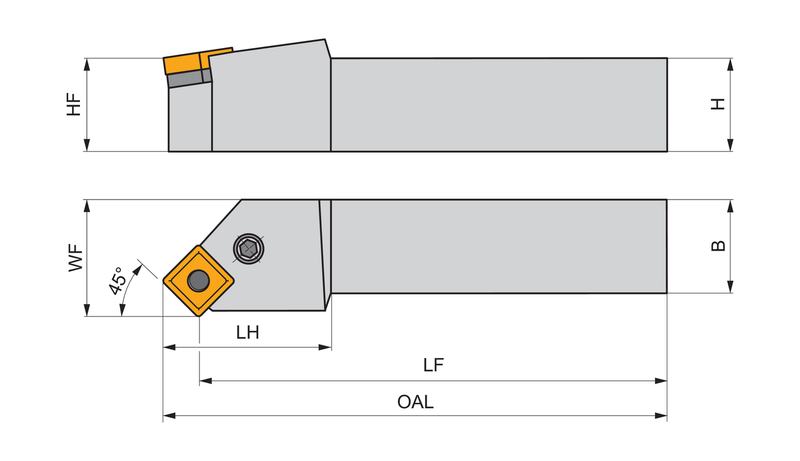

Dimensions
Overall Length — in (OAL)10.335"
Overall Length — mm (OAL)262.5 mm
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8281405
EAN3603604052214
File Type Download
PSSNR 4040 S 19 — 3D Model STP Download
PSSNR 4040 S 19 — 2D Model DXF Download
PSSNR 4040 S 19 — Line Drawing PDF Download
