A25R-PDUNL 11
A25R-PDUNL 11
A25R-PDUNL 11

A25R-PDUNL 11

UGC DOR8281406
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$431.00 CAD - $431.00 CAD
$431.00 CAD
$431.00 CAD - $431.00 CAD
$431.00 CAD

Vendu en lots de : 1

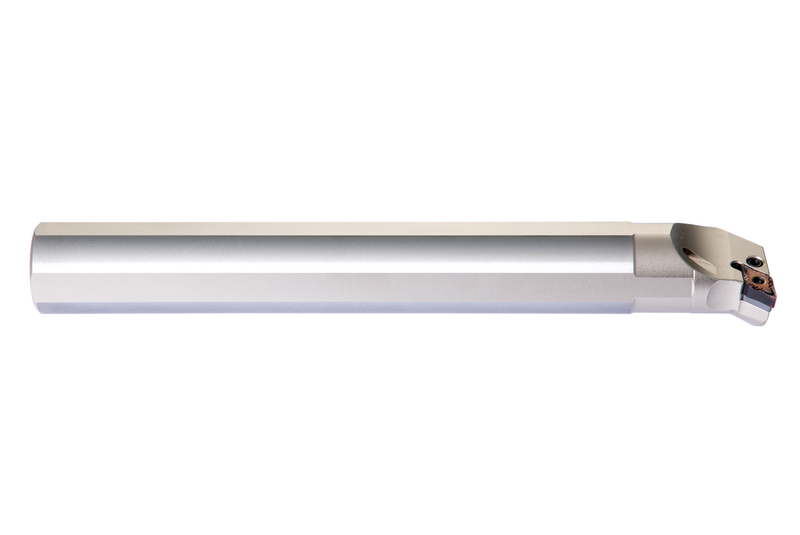

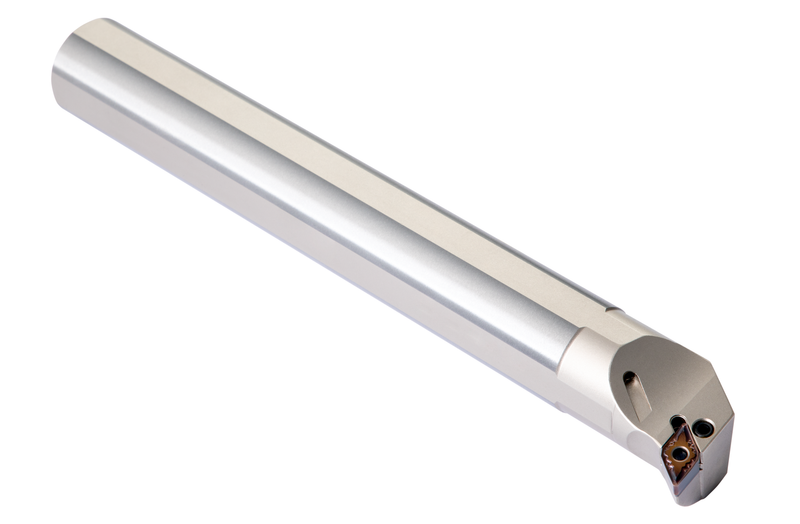

Barre d'alésage à levier pour loger un insert négatif en losange de 55° avec un cercle inscrit de 9,525mm de diamètre, 4,76mm d'épaisseur (désignation ISO DN.. 1104.. ), coupe à gauche de 93° en bout avec queue déportée, acier sans trou d'arrosage, 25mm de diamètre x 200mm de long pour l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25R-PDUNL 11
Product Number8281406
Product FamilyPDUN(RL) INT

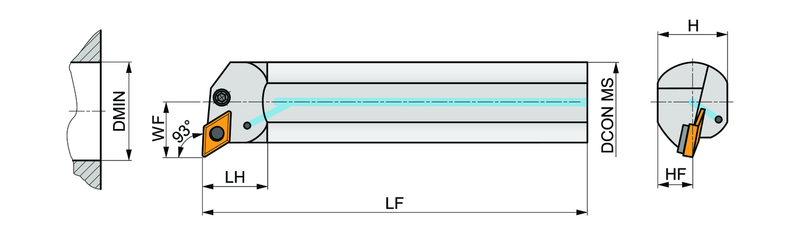

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.22"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8281406
EAN3603604052221
File Type Download
A25R-PDUNL 11 — 3D Model STP Download
A25R-PDUNL 11 — 2D Model DXF Download
A25R-PDUNL 11 — Line Drawing PDF Download
