A25R-PWLNR 0604
A25R-PWLNR 0604
A25R-PWLNR 0604

A25R-PWLNR 0604

UGC DOR8281409
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$431.00 CAD - $431.00 CAD
$431.00 CAD
$431.00 CAD - $431.00 CAD
$431.00 CAD

Vendu en lots de : 1

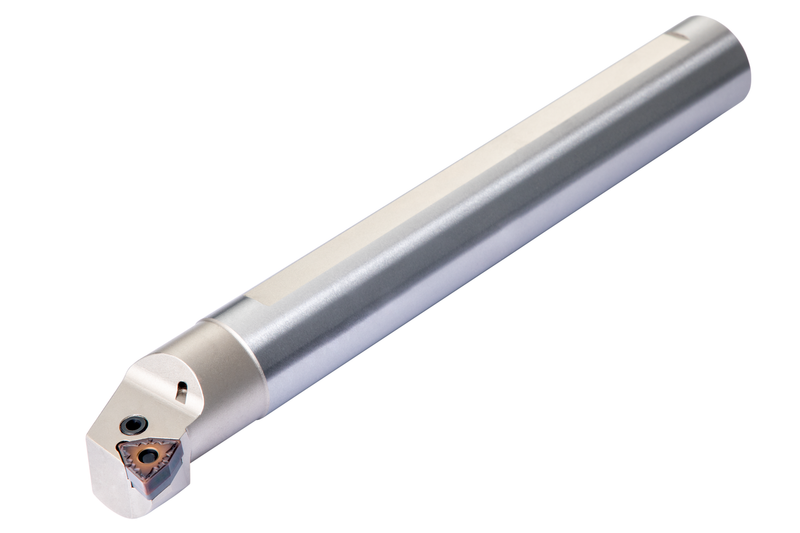

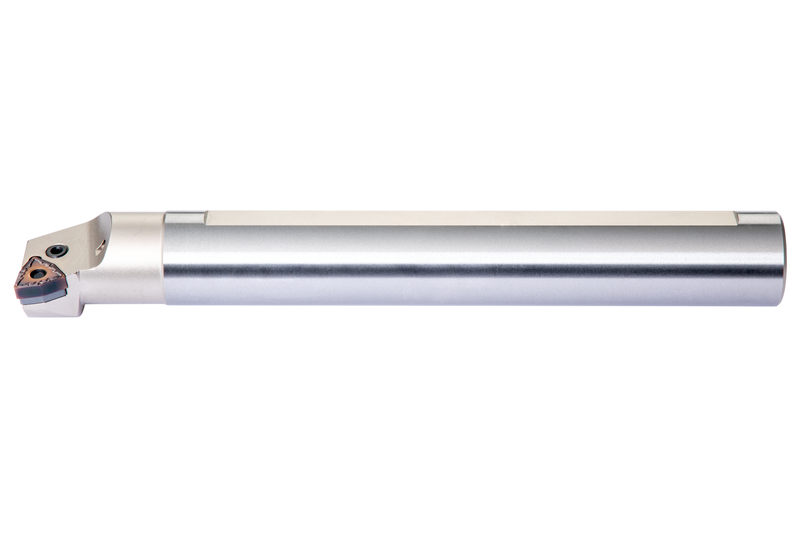

Barre d'alésage à levier pour plaquette négative trigon 80° avec cercle inscrit de 9,525 mm de diamètre, 4,76 mm d'épaisseur (désignation ISO WN.. 0604.. ), coupe à droite à 95° en bout et en approche, avec queue déportée, acier sans trou de liquide de coupe, diamètre 25 mm x 200 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25R-PWLNR 0604
Product Number8281409
Product FamilyPWLN(RL) INT

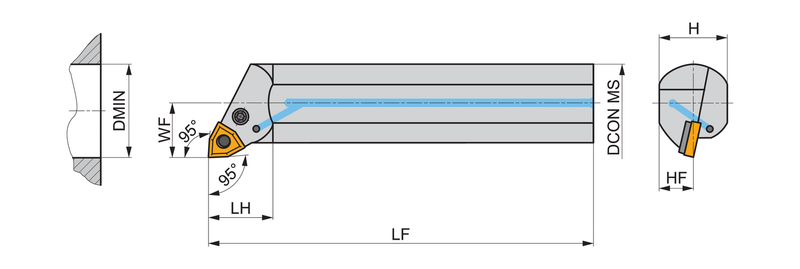

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.22"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8281409
EAN3603604052252
File Type Download
A25R-PWLNR 0604 — 3D Model STP Download
A25R-PWLNR 0604 — 2D Model DXF Download
A25R-PWLNR 0604 — Line Drawing PDF Download
