A32S-PDUNR 11
A32S-PDUNR 11
A32S-PDUNR 11

A32S-PDUNR 11

UGC DOR8281411
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$447.00 CAD - $447.00 CAD
$447.00 CAD
$447.00 CAD - $447.00 CAD
$447.00 CAD

Vendu en lots de : 1

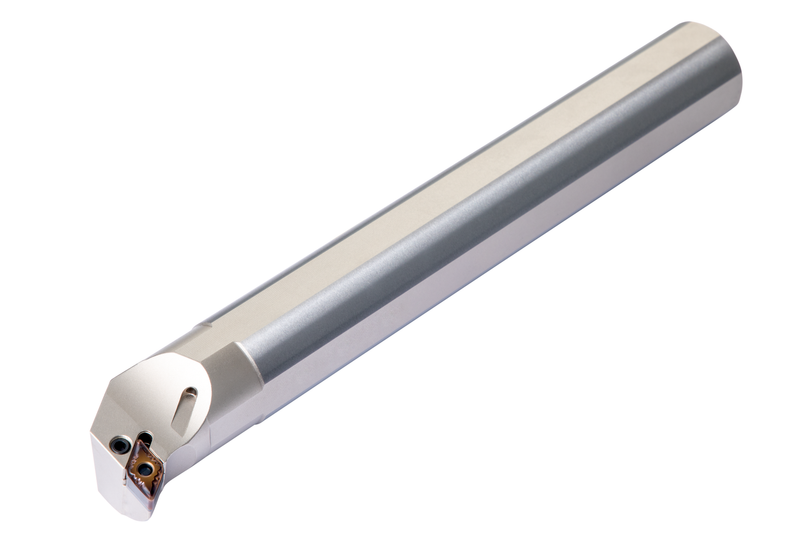

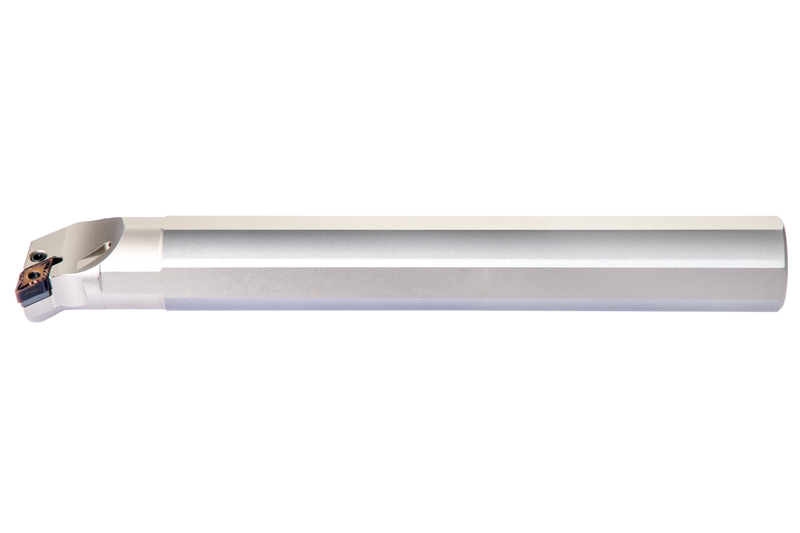

Barre d'alésage à levier pour loger un insert négatif en losange de 55° avec un diamètre de cercle inscrit de 9,525 mm, 4,76 mm d'épaisseur (désignation ISO DN... 1104...), coupe à droite à 93° avec queue déportée, en acier sans trou d'arrosage, 32 mm de diamètre x 250 mm de long pour l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32S-PDUNR 11
Product Number8281411
Product FamilyPDUN(RL) INT

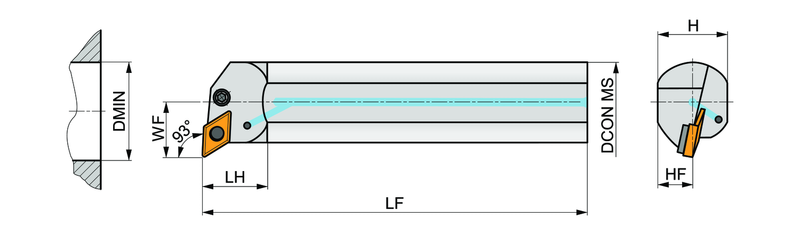

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.535"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8281411
EAN3603604052276
File Type Download
A32S-PDUNR 11 — 3D Model STP Download
A32S-PDUNR 11 — 2D Model DXF Download
A32S-PDUNR 11 — Line Drawing PDF Download
