PSBNR 5050 T 2512
PSBNR 5050 T 2512
PSBNR 5050 T 2512

PSBNR 5050 T 2512

UGC DOR8291186
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$445.00 CAD - $445.00 CAD
$445.00 CAD
$445.00 CAD - $445.00 CAD
$445.00 CAD

Vendu en lots de : 1

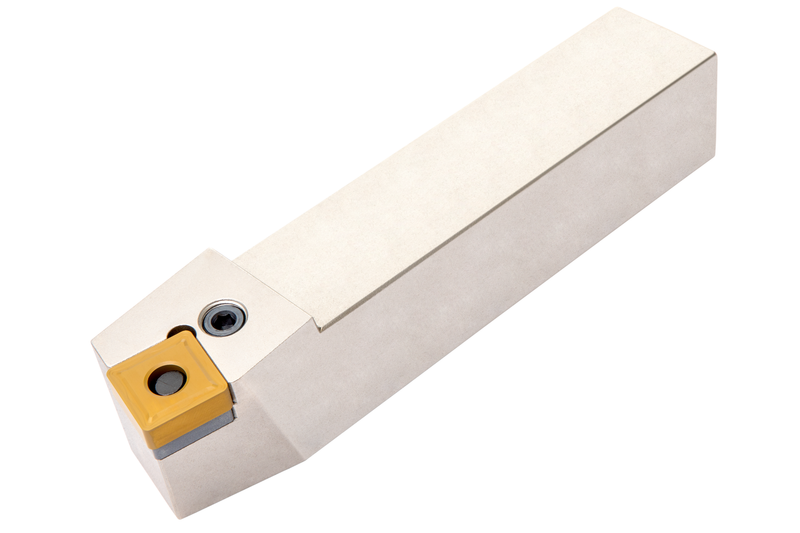

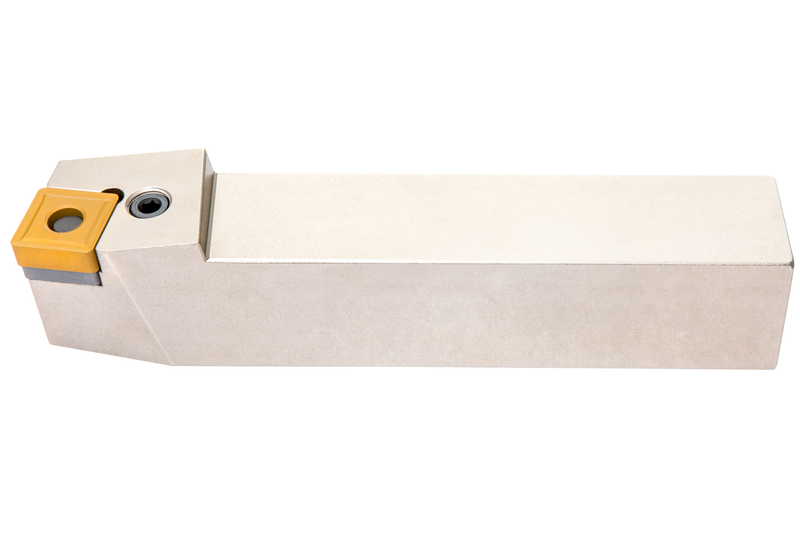

Outil de tournage à levier pour plaquette carrée négative avec un diamètre de cercle inscrit de 25,4 mm, 12 mm d'épaisseur (désignation ISO SN.. 2512.. ), coupe latérale droite à 75° avec queue cylindrique, hauteur d'outil de 50 mm x largeur de 50 mm x longueur de 300 mm pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSBNR 5050 T 2512
Product Number8291186
Product FamilyPSBN(RL) EXT

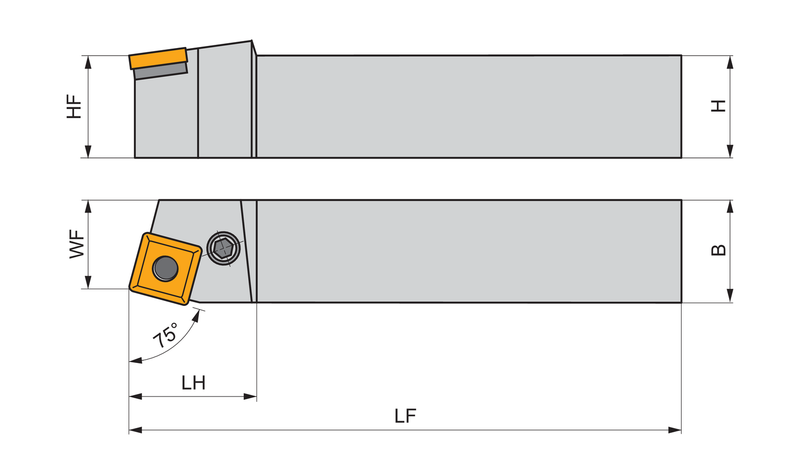

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Shank Height — mm (H)1.969 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8291186
EAN3603604064248
File Type Download
PSBNR 5050 T 2512 — Line Drawing PDF Download
