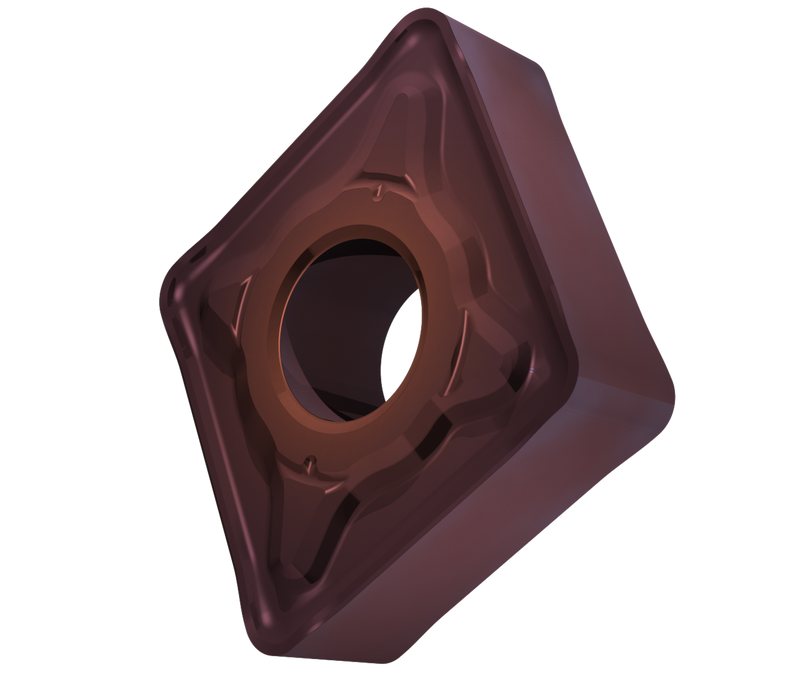

CNMG 433-NRM:T8430
CNMG 433-NRM:T8430

CNMG 433-NRM:T8430

UGC DOR8342344
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NRM, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage moyen à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433-NRM:T8430
Product Name (ISO)CNMG 120412-NRM:T8430
GradeT8430
Chipbreaker (CBMD)NRM
Product Number8342344
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8342344
EAN3603604108133
File Type Download
CNMG 433-NRM:T8430 — Line Drawing PDF Download
