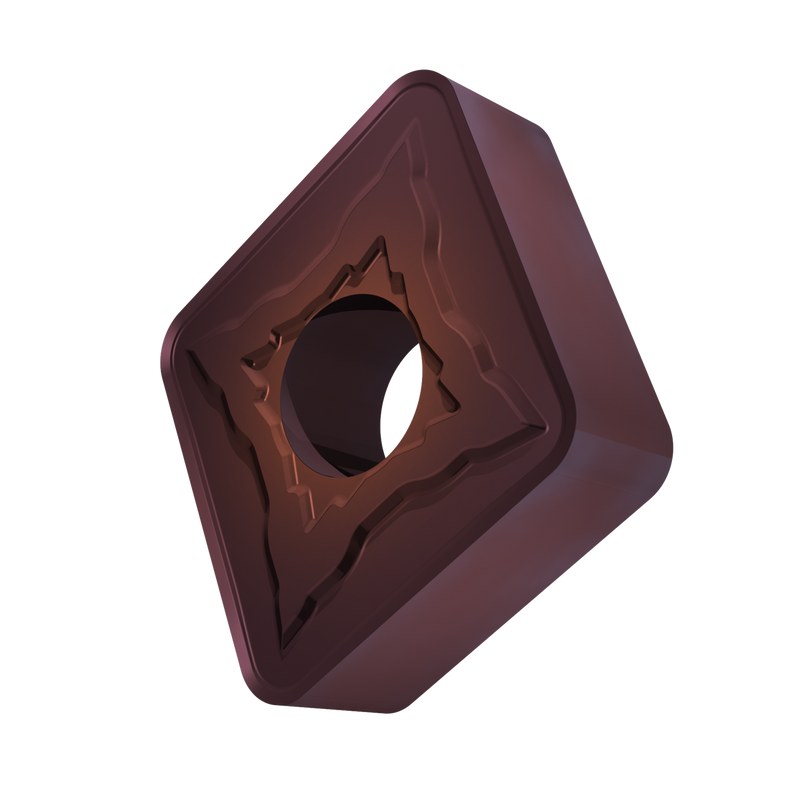

CNMG 434-NMR:T8430
CNMG 434-NMR:T8430

CNMG 434-NMR:T8430

UGC DOR8342345
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/16" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage fin à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 434-NMR:T8430
Product Name (ISO)CNMG 120416E-NMR:T8430
GradeT8430
Chipbreaker (CBMD)RMN
Product Number8342345
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle de 80° inclus rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8342345
EAN3603604108140
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage possible
File Type Download
CNMG 434-NMR:T8430 — Line Drawing PDF Download
