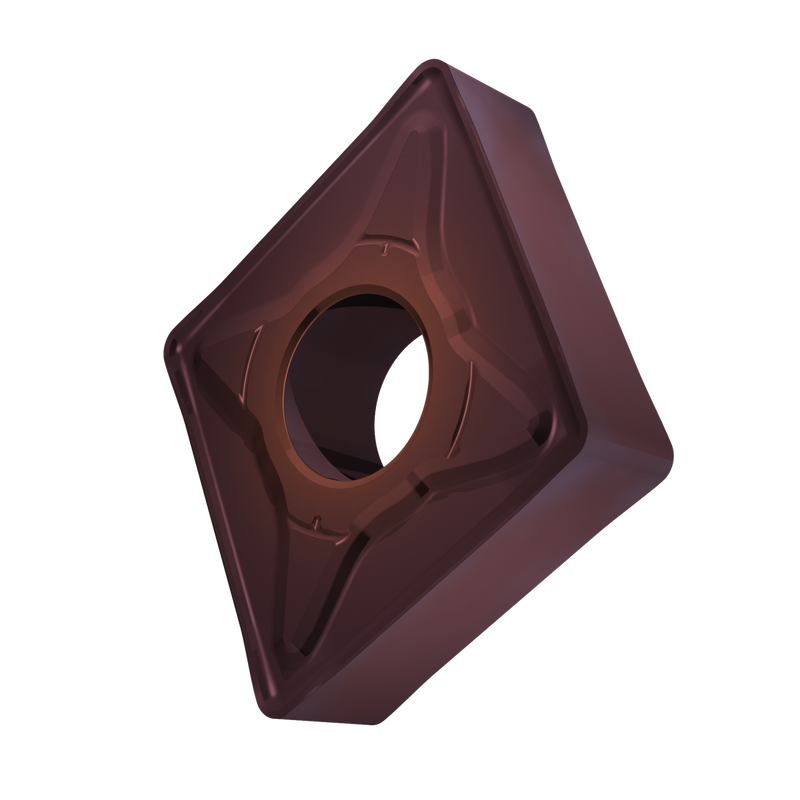

CNMG 643-NRM:T8430
CNMG 643-NRM:T8430

CNMG 643-NRM:T8430

UGC DOR8342347
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.14 CAD - $31.14 CAD
$31.14 CAD
$31.14 CAD - $31.14 CAD
$31.14 CAD

Vendu en lots de : 10

Plaquette amovible négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 3/64" et une précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NRM, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage moyen à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 643-NRM:T8430
Product Name (ISO)CNMG 190612-NRM:T8430
GradeT8430
Chipbreaker (CBMD)MRN
Product Number8342347
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8342347
EAN3603604108164
File Type Download
CNMG 643-NRM:T8430 — Line Drawing PDF Download
