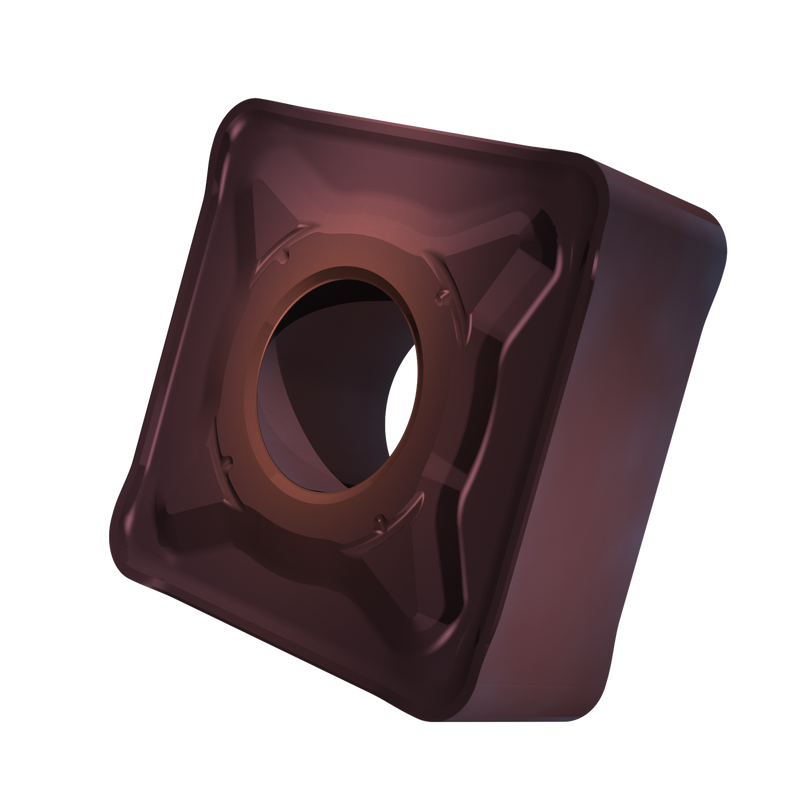

SNMG 544-NRM:T8430
SNMG 544-NRM:T8430

SNMG 544-NRM:T8430

UGC DOR8342373
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.93 CAD - $22.93 CAD
$22.93 CAD
$22.93 CAD - $22.93 CAD
$22.93 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée, avec un diamètre de cercle inscrit de 5/8", 1/4" d'épaisseur, un rayon de bec de 1/16" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NRM, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage moyen à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 544-NRM:T8430
Product Name (ISO)SNMG 150616-NRM:T8430
GradeT8430
Chipbreaker (CBMD)NRM
Product Number8342373
Product FamilyGroupe maritime permanent de l'OTAN
Insert Geometry
Insert DesignGroupe maritime permanent de l'OTAN
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8342373
EAN3603604108225
File Type Download
SNMG 544-NRM:T8430 — Line Drawing PDF Download
