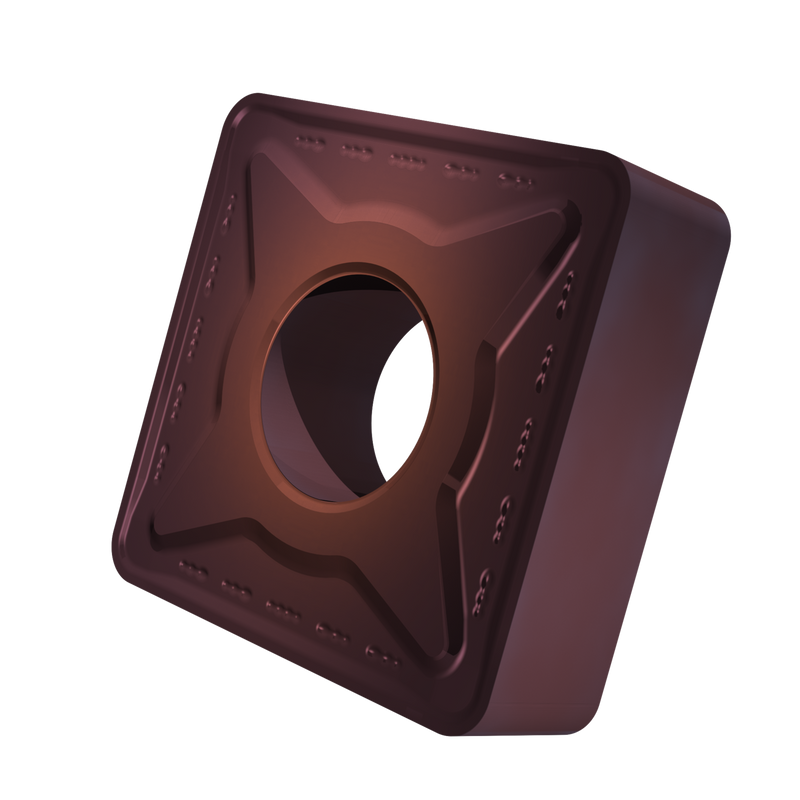

SNMG 644-RM:T8430
SNMG 644-RM:T8430

SNMG 644-RM:T8430

UGC DOR8342375
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.14 CAD - $31.14 CAD
$31.14 CAD
$31.14 CAD - $31.14 CAD
$31.14 CAD

Vendu en lots de : 10

Plaquette de tournage négative double-face, carrée, avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 1/16" et une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage moyen à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 644-RM:T8430
Product Name (ISO)SNMG 190616E-RM:T8430
GradeT8430
Chipbreaker (CBMD)RM
Product Number8342375
Product FamilyFOGNM
Insert Geometry
Insert DesignGMNS
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8342375
EAN3603604108249
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
SNMG 644-RM:T8430 — Line Drawing PDF Download
