SNMM 866-NRM:T8430
SNMM 866-NRM:T8430

SNMM 866-NRM:T8430

UGC DOR8342376
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.57 CAD - $55.57 CAD
$55.57 CAD
$55.57 CAD - $55.57 CAD
$55.57 CAD

Vendu en lots de : 10

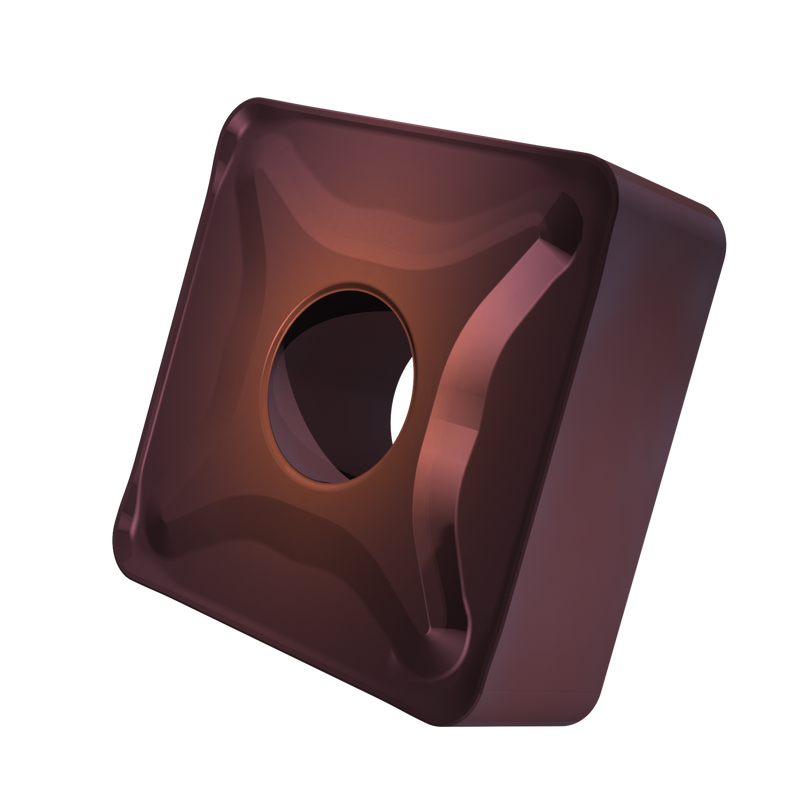

Plaquette de tournage négative double-face, carrée, avec un cercle inscrit de 1" de diamètre, 3/8" d'épaisseur, rayon de bec de 3/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NRM, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage moyen à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 866-NRM:T8430
Product Name (ISO)SNMM 250924-NRM:T8430
GradeT8430
Chipbreaker (CBMD)NRM
Product Number8342376
Product FamilySMNM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Tool Information
Reference Numbers
EDP Number8342376
EAN3603604108256
File Type Download
SNMM 866-NRM:T8430 — Line Drawing PDF Download
