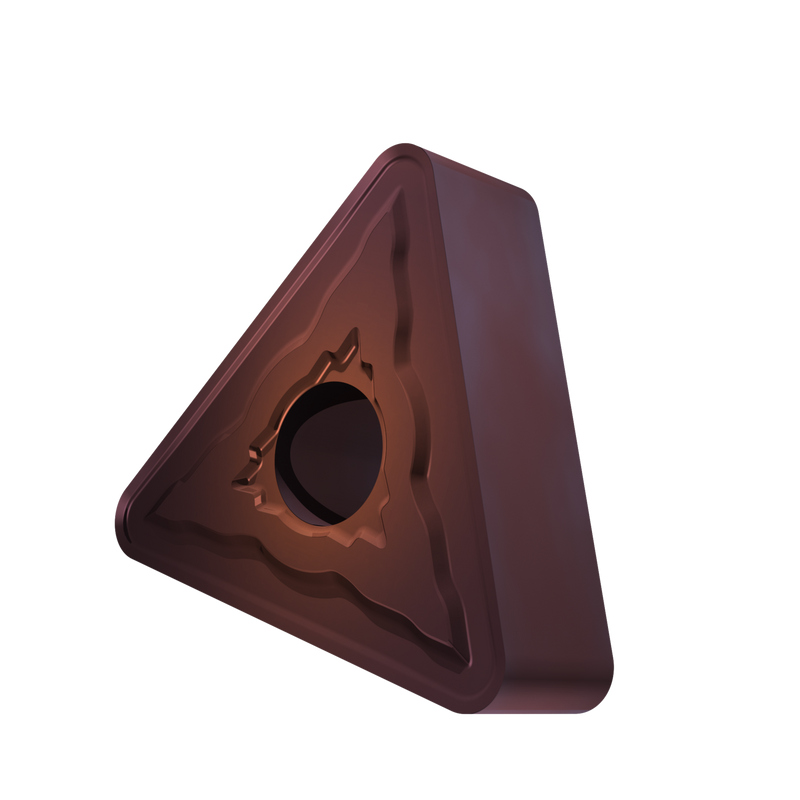

TNMG 333-NMR:T8430
TNMG 333-NMR:T8430

TNMG 333-NMR:T8430

UGC DOR8342377
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.00 CAD - $12.00 CAD
$12.00 CAD
$12.00 CAD - $12.00 CAD
$12.00 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage léger à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 333-NMR:T8430
Product Name (ISO)TNMG 160412E-NMR:T8430
GradeT8430
Chipbreaker (CBMD)RMN
Product Number8342377
Product FamilyTNMG
Insert Geometry
Insert DesignGTNM
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8342377
EAN3603604108263
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
TNMG 333-NMR:T8430 — Line Drawing PDF Download
