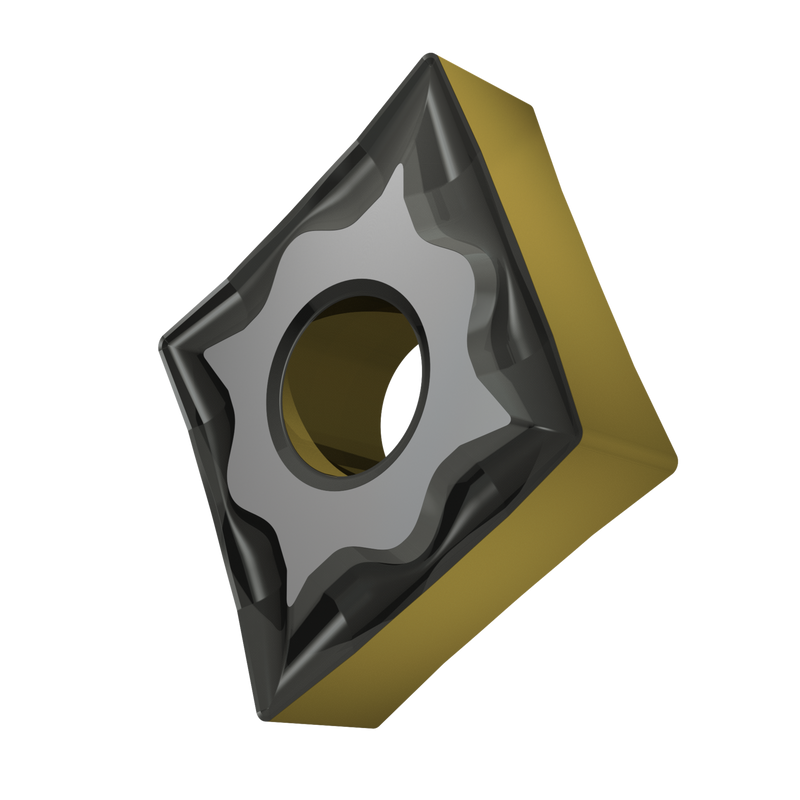

CNMG 431-NF:T9415
CNMG 431-NF:T9415

CNMG 431-NF:T9415

UGC DOR8345269
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.71 CAD - $14.71 CAD
$14.71 CAD
$14.71 CAD - $14.71 CAD
$14.71 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre du cercle inscrit de 1/2", épaisseur 3/16", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF, en nuance T9415, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la gamme ISO P05 - P30, pour l'usinage de finition à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 431-NF:T9415
Product Name (ISO)CNMG 120404E-NF:T9415
GradeT9415
Chipbreaker (CBMD)NF
Product Number8345269
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle de 80° inclus, rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8345269
EAN3603604107266
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage possible
File Type Download
CNMG 431-NF:T9415 — Line Drawing PDF Download
