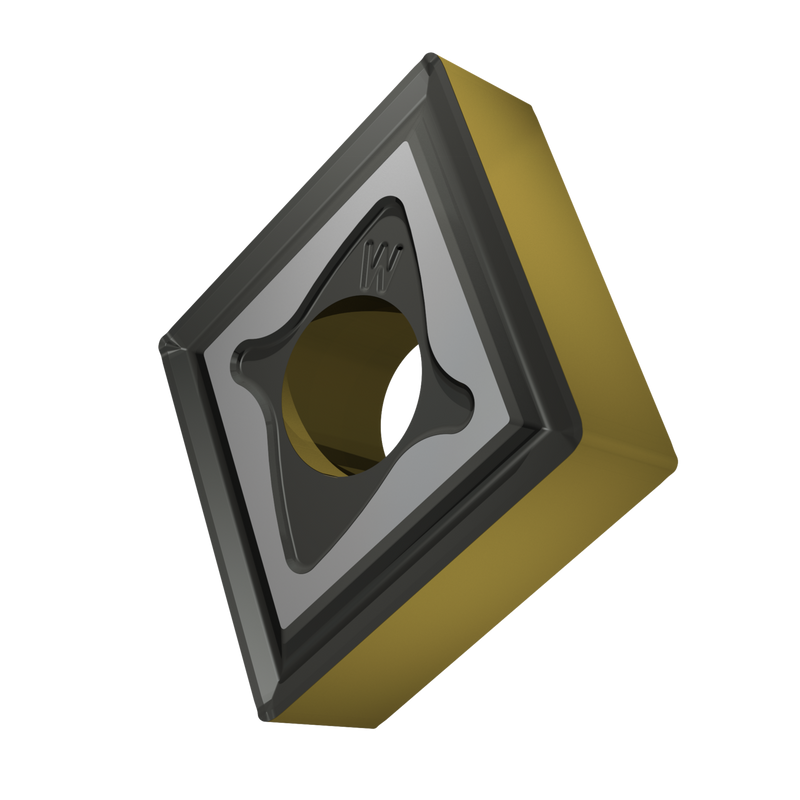

CNMG 431W-MR:T9415
CNMG 431W-MR:T9415

CNMG 431W-MR:T9415

UGC DOR8345513
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.61 CAD - $16.61 CAD
$16.61 CAD
$16.61 CAD - $16.61 CAD
$16.61 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/64", précision d'indexage selon la classe de tolérance ISO M, brise-copeaux MR avec conception de pointe WIPER, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 431W-MR:T9415
Product Name (ISO)CNMG 120404W-MR:T9415
GradeT9415
Chipbreaker (CBMD)W-MR
Product Number8345513
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8345513
EAN3603604107303
File Type Download
CNMG 431W-MR:T9415 — Line Drawing PDF Download
