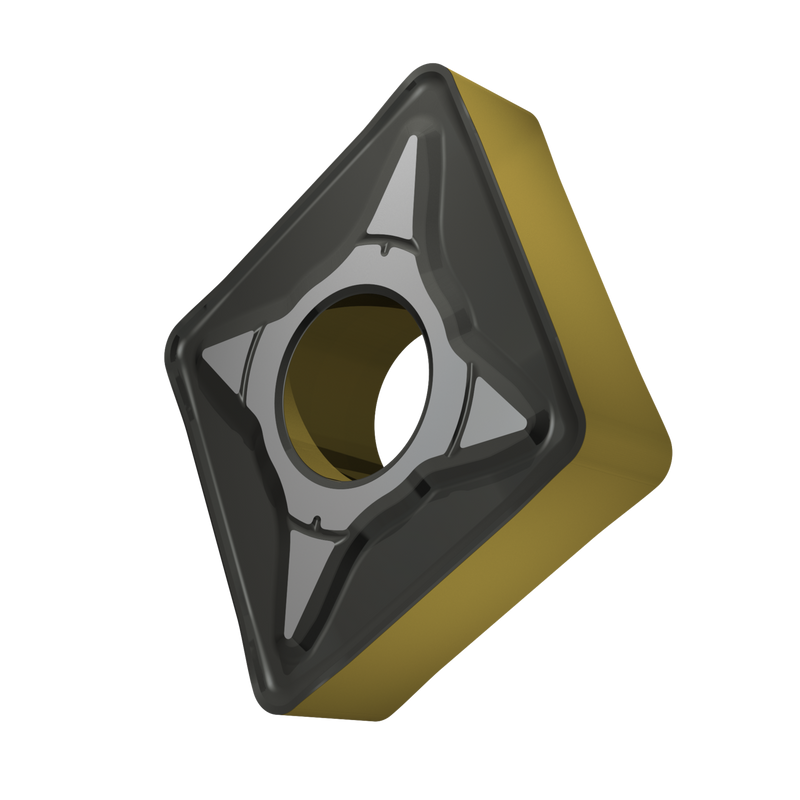

CNMG 644-NRM:T9415
CNMG 644-NRM:T9415

CNMG 644-NRM:T9415

UGC DOR8345529
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.83 CAD - $31.83 CAD
$31.83 CAD
$31.83 CAD - $31.83 CAD
$31.83 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïdale à 80° avec un cercle inscrit de 3/4" de diamètre, 1/4" d'épaisseur, un rayon de bec de 1/16" et une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NRM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 - P30, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 644-NRM:T9415
Product Name (ISO)CNMG 190616-NRM:T9415
GradeT9415
Chipbreaker (CBMD)MRN
Product Number8345529
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle intern rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8345529
EAN3603604107464
File Type Download
CNMG 644-NRM:T9415 — Line Drawing PDF Download
