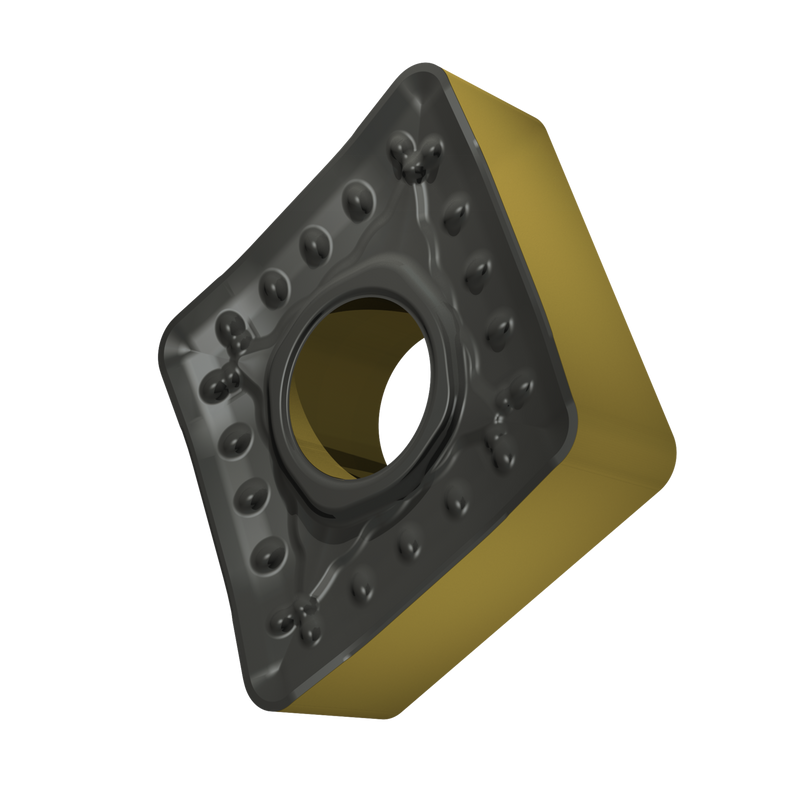

CNMM 433-OR:T9415
CNMM 433-OR:T9415

CNMM 433-OR:T9415

UGC DOR8345534
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.71 CAD - $14.71 CAD
$14.71 CAD
$14.71 CAD - $14.71 CAD
$14.71 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un cercle inscrit de 1/2" de diamètre, 3/16" d'épaisseur, rayon de pointe de 3/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux OR, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 433-OU:T9415
Product Name (ISO)CNMM 120412E-OR:T9415
GradeT9415
Chipbreaker (CBMD)OU_
Product Number8345534
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8345534
EAN3603604107518
File Type Download
CNMM 433-OR:T9415 — Line Drawing PDF Download
