CNMM 542-OR:T9415
CNMM 542-OR:T9415

CNMM 542-OR:T9415

UGC DOR8345535
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.43 CAD - $23.43 CAD
$23.43 CAD
$23.43 CAD - $23.43 CAD
$23.43 CAD

Vendu en lots de : 10

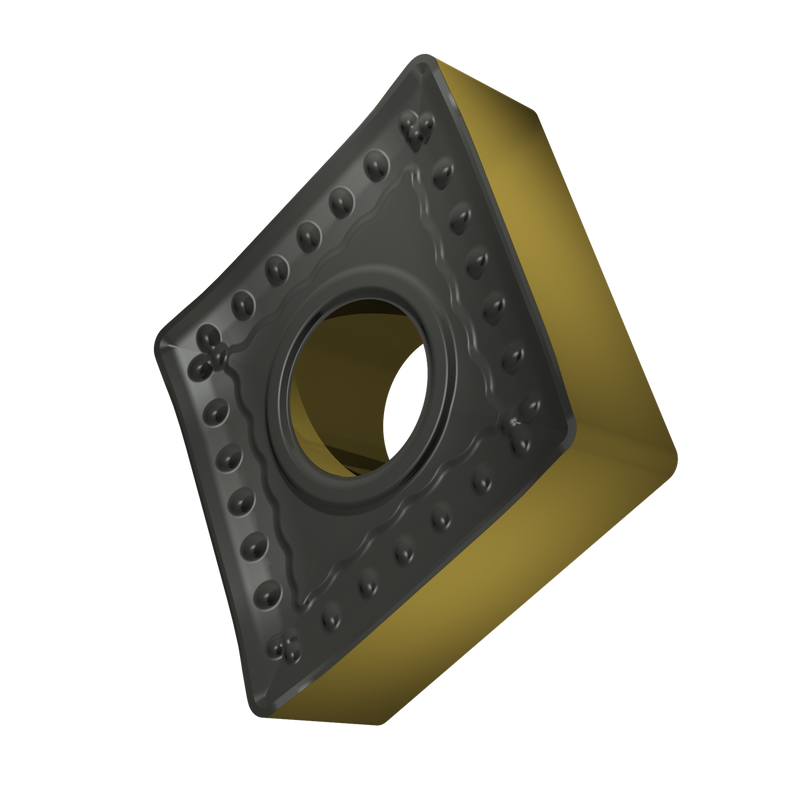

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 5/8", 1/4" d'épaisseur, un rayon de bec de 1/32" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 542-OR:T9415
Product Name (ISO)CNMM 160608F-OR:T9415
GradeT9415
Chipbreaker (CBMD)OU_
Product Number8345535
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle de 80° inclus, losangique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8345535
EAN3603604107525
File Type Download
CNMM 542-OR:T9415 — Line Drawing PDF Download
