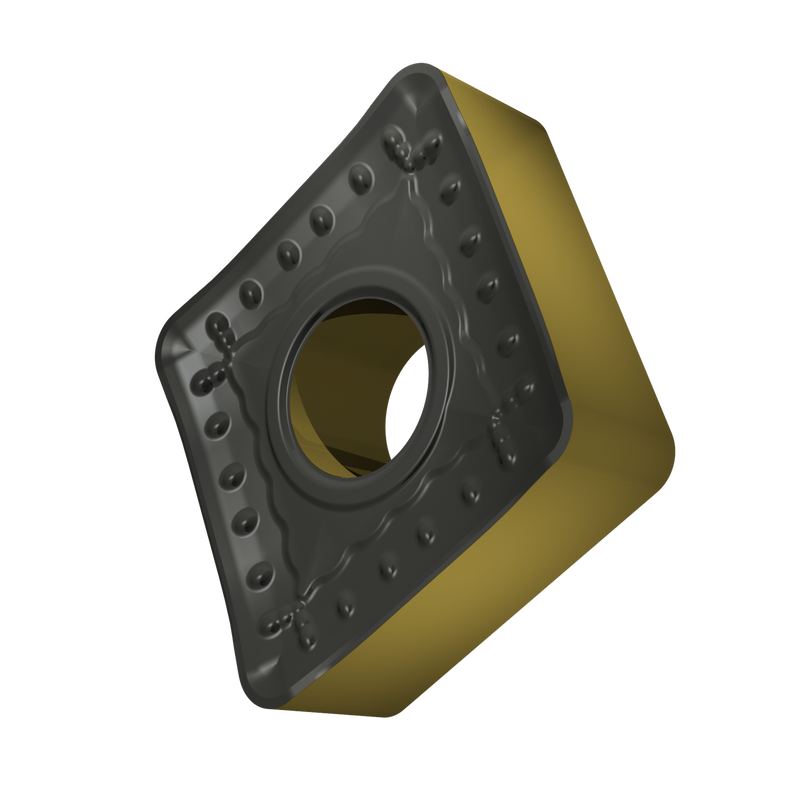

CNMM 544-OR:T9415
CNMM 544-OR:T9415

CNMM 544-OR:T9415

UGC DOR8345537
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.43 CAD - $23.43 CAD
$23.43 CAD
$23.43 CAD - $23.43 CAD
$23.43 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 5/8", épaisseur de 1/4", rayon de bec de 1/16" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9415, un carbure WC-Co à gradient de fonctions revêtu MT-CVD dans la plage ISO P05 - P30, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 544-OR:T9415
Product Name (ISO)CNMM 160616E-OR:T9415
GradeT9415
Chipbreaker (CBMD)OU_
Product Number8345537
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8345537
EAN3603604107549
File Type Download
CNMM 544-OR:T9415 — Line Drawing PDF Download
