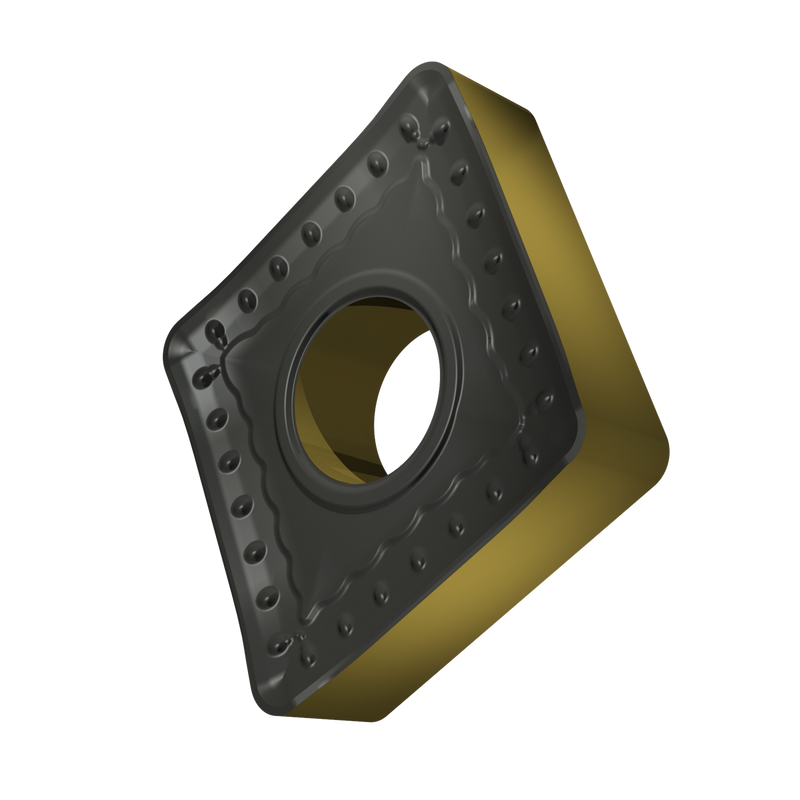

CNMM 644-OR:T9415
CNMM 644-OR:T9415

CNMM 644-OR:T9415

UGC DOR8345539
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.83 CAD - $31.83 CAD
$31.83 CAD
$31.83 CAD - $31.83 CAD
$31.83 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 1/16" et une précision de positionnement conforme à la classe de tolérance ISO M, brise-copeaux OR, en nuance T9415, un carbure WC-Co à gradient de fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 644-OR:T9415
Product Name (ISO)CNMM 190616E-OR:T9415
GradeT9415
Chipbreaker (CBMD)OU_
Product Number8345539
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8345539
EAN3603604107563
File Type Download
CNMM 644-OR:T9415 — Line Drawing PDF Download
