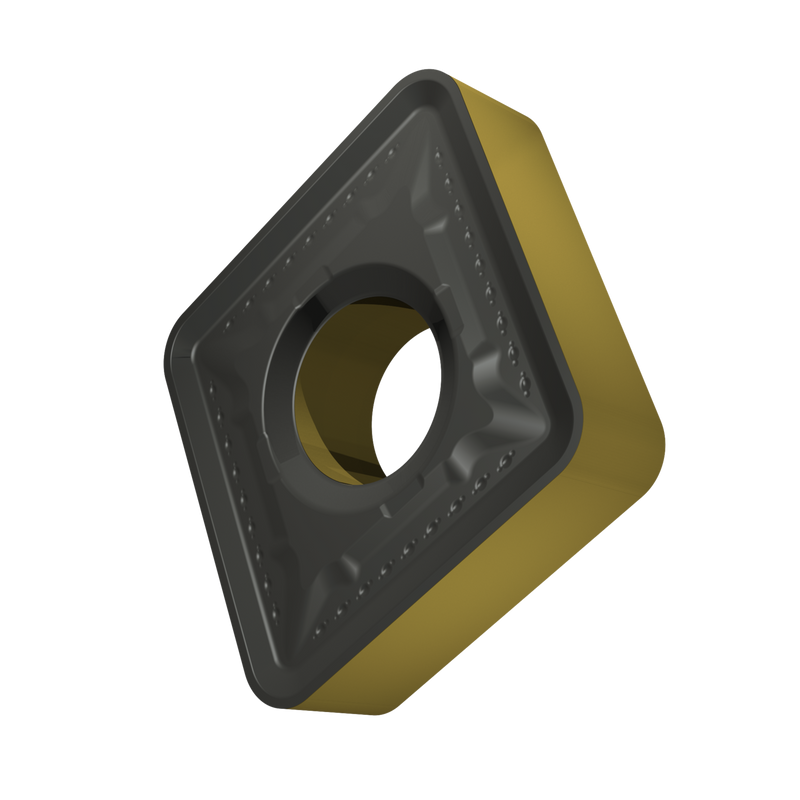

CNMM 646-HR2:T9415
CNMM 646-HR2:T9415

CNMM 646-HR2:T9415

UGC DOR8345540
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.83 CAD - $31.83 CAD
$31.83 CAD
$31.83 CAD - $31.83 CAD
$31.83 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec diamètre de cercle inscrit de 3/4", épaisseur de 1/4", rayon de bec de 3/32" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux HR2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 646-HR2:T9415
Product Name (ISO)CNMM 190624-HR2:T9415
GradeT9415
Chipbreaker (CBMD)RH2
Product Number8345540
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Tool Information
Reference Numbers
EDP Number8345540
EAN3603604107570
File Type Download
CNMM 646-HR2:T9415 — Line Drawing PDF Download
