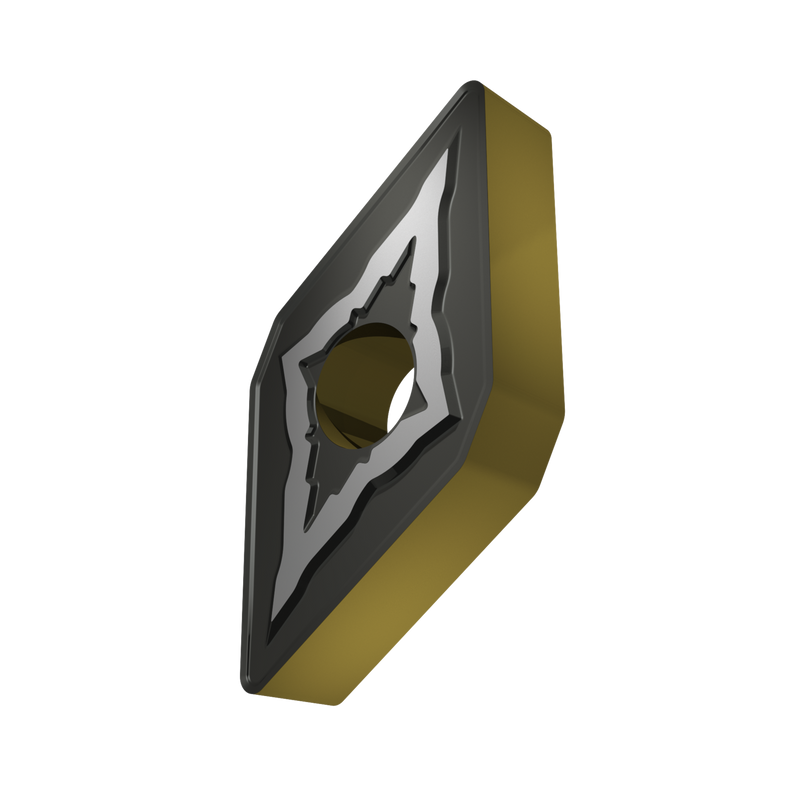

DNMG 432-NMR:T9415
DNMG 432-NMR:T9415

DNMG 432-NMR:T9415

UGC DOR8345551
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.69 CAD - $21.69 CAD
$21.69 CAD
$21.69 CAD - $21.69 CAD
$21.69 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage léger à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 432-NMR:T9415
Product Name (ISO)DNMG 150408E-NMR:T9415
GradeT9415
Chipbreaker (CBMD)RMN
Product Number8345551
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle de 55° inclus rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8345551
EAN3603604107686
Material Group Suitability
P — Steel and Cast Steel Usage principal
File Type Download
DNMG 432-NMR:T9415 — Line Drawing PDF Download
