DNMM 443-OR:T9415
DNMM 443-OR:T9415

DNMM 443-OR:T9415

UGC DOR8345563
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.43 CAD - $23.43 CAD
$23.43 CAD
$23.43 CAD - $23.43 CAD
$23.43 CAD

Vendu en lots de : 10

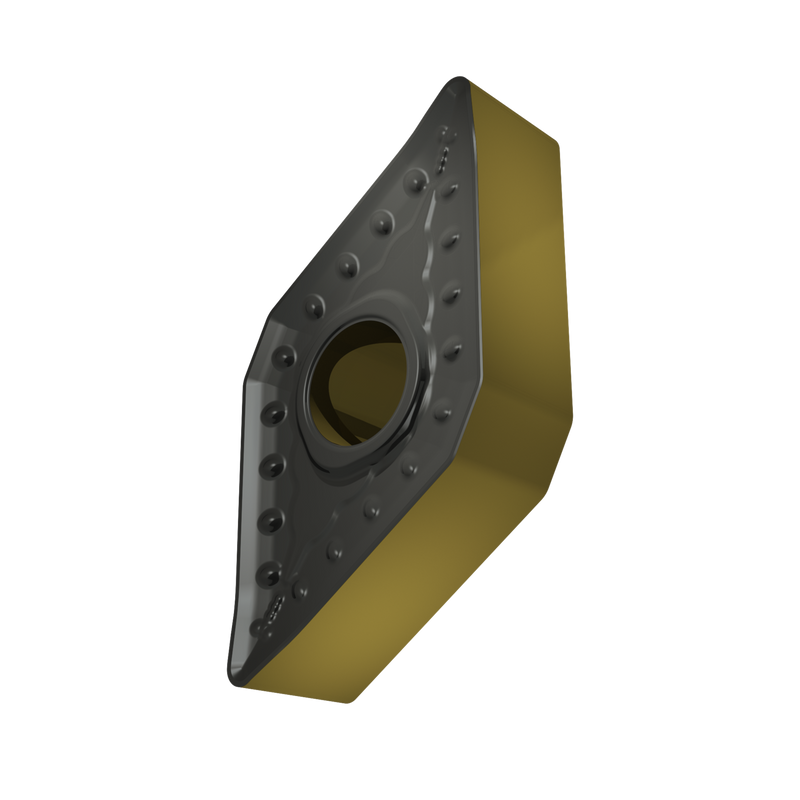

Plaquette négative double-face, rhomboïde 55° avec cercle inscrit de 1/2" de diamètre, 1/4" d'épaisseur, rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMM 443-OR:T9415
Product Name (ISO)DNMM 150612E-OR:T9415
GradeT9415
Chipbreaker (CBMD)OU_
Product Number8345563
Product FamilyNe pas me déranger

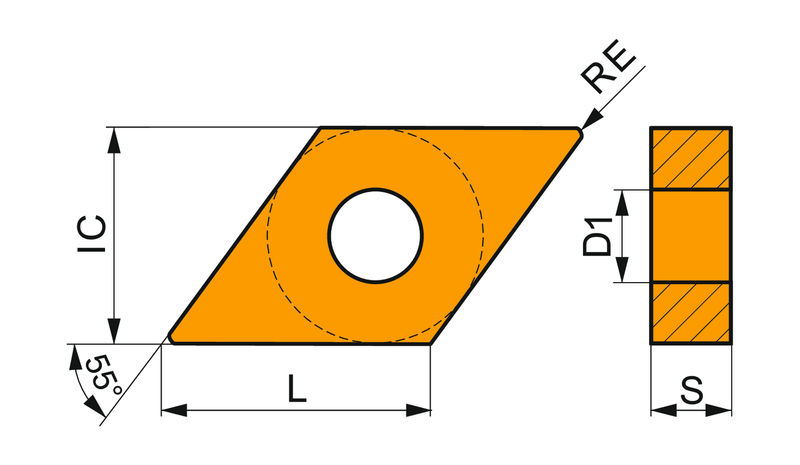

Insert Geometry
Insert DesignDNMM
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8345563
EAN3603604107808
File Type Download
DNMM 443-OR:T9415 — Line Drawing PDF Download
