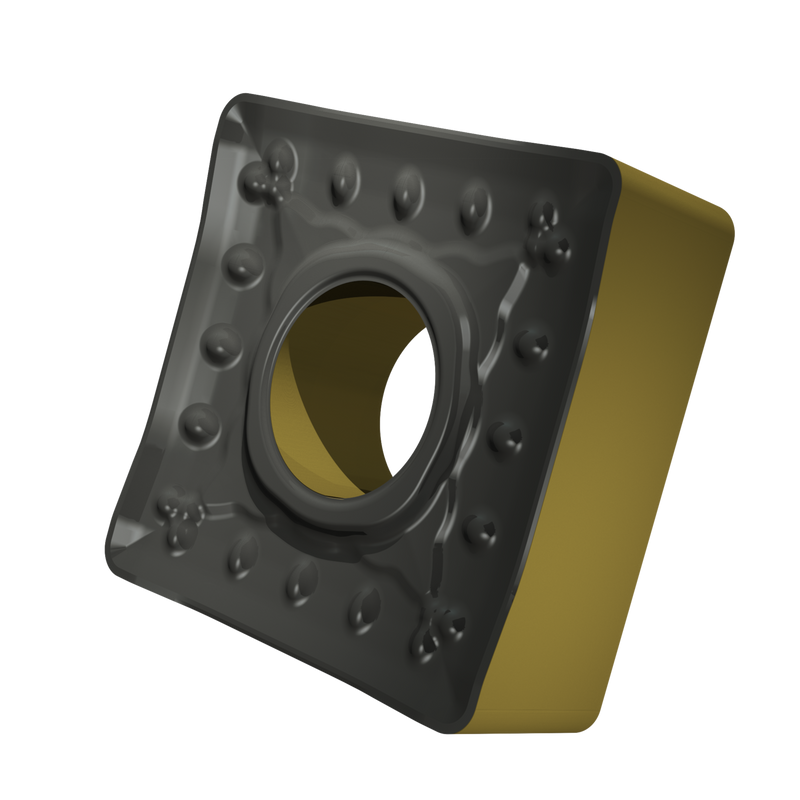

SNMM 432-OR:T9415
SNMM 432-OR:T9415

SNMM 432-OR:T9415

UGC DOR8345580
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.33 CAD - $14.33 CAD
$14.33 CAD
$14.33 CAD - $14.33 CAD
$14.33 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec cercle inscrit de 1/2 po de diamètre, 3/16 po d'épaisseur, rayon de bec de 1/32 po et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9415, un carbure WC-Co à gradient de fonctionnalité revêtu MT-CVD, dans la plage ISO P05 - P30, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 432-OR:T9415
Product Name (ISO)SNMM 120408E-OR:T9415
GradeT9415
Chipbreaker (CBMD)OU_
Product Number8345580
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)S - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8345580
EAN3603604107976
File Type Download
SNMM 432-OR:T9415 — Line Drawing PDF Download
