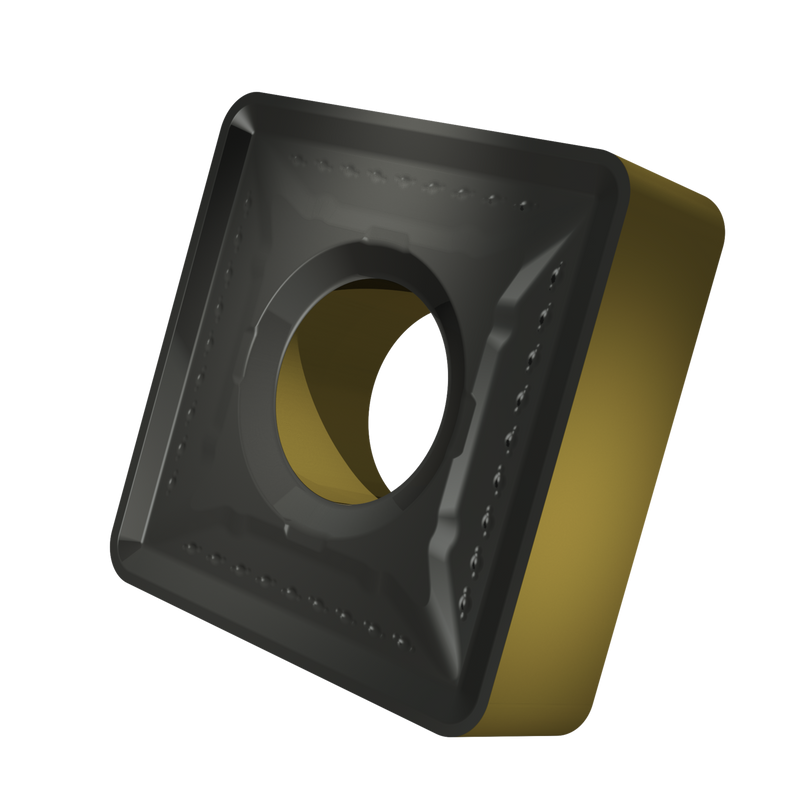

SNMM 644-HR2:T9415
SNMM 644-HR2:T9415

SNMM 644-HR2:T9415

UGC DOR8345584
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.76 CAD - $30.76 CAD
$30.76 CAD
$30.76 CAD - $30.76 CAD
$30.76 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec diamètre du cercle inscrit de 3/4", épaisseur de 1/4", rayon de bec de 1/16" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux HR2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO P05 - P30, pour l'usinage lourd à extra lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 644-HR2:T9415
Product Name (ISO)SNMM 190616-HR2:T9415
GradeT9415
Chipbreaker (CBMD)RH2
Product Number8345584
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8345584
EAN3603604109017
File Type Download
SNMM 644-HR2:T9415 — Line Drawing PDF Download
