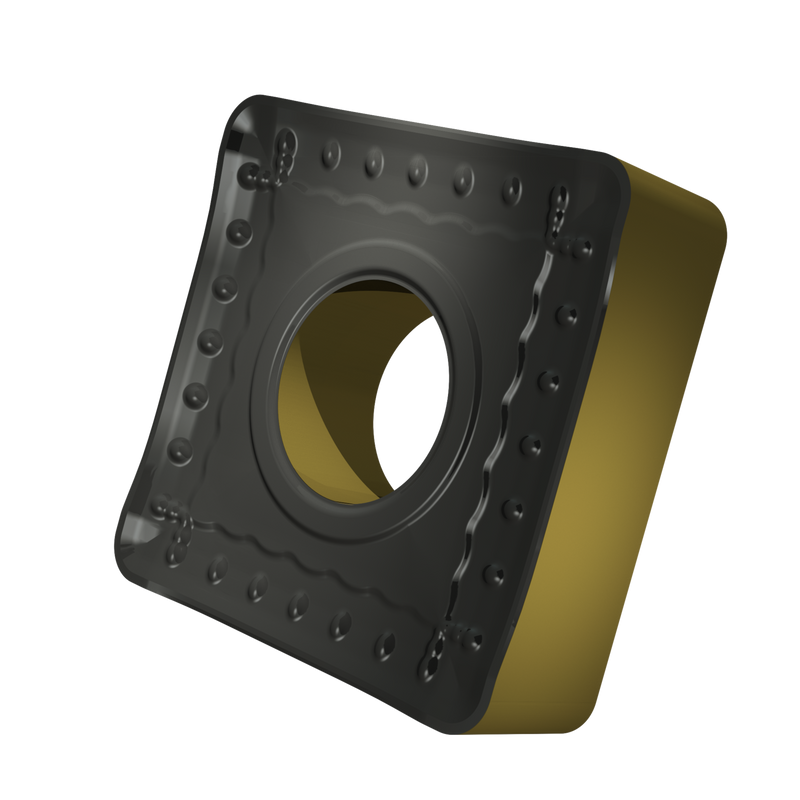

SNMM 644-OR:T9415
SNMM 644-OR:T9415

SNMM 644-OR:T9415

UGC DOR8345585
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.76 CAD - $30.76 CAD
$30.76 CAD
$30.76 CAD - $30.76 CAD
$30.76 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 3/4", une épaisseur de 1/4", un rayon de bec de 1/16" et une précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux OR, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 644-OR:T9415
Product Name (ISO)SNMM 190616E-OR:T9415
GradeT9415
Chipbreaker (CBMD)OU_
Product Number8345585
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8345585
EAN3603604109024
File Type Download
SNMM 644-OR:T9415 — Line Drawing PDF Download
