SNMM 866-NR2:T9415
SNMM 866-NR2:T9415

SNMM 866-NR2:T9415

UGC DOR8345589
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.14 CAD - $63.14 CAD
$63.14 CAD
$63.14 CAD - $63.14 CAD
$63.14 CAD

Vendu en lots de : 10

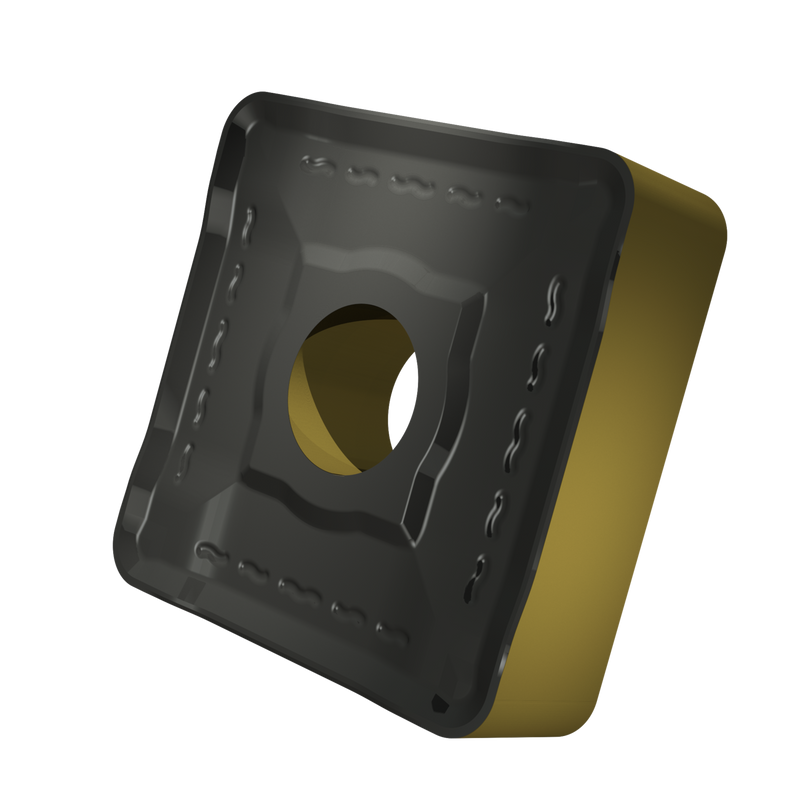

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 1", une épaisseur de 3/8", un rayon de bec de 3/32" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NR2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 - P30, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 866-NR2:T9415
Product Name (ISO)SNMM 250924F-NR2:T9415
GradeT9415
Chipbreaker (CBMD)NR2
Product Number8345589
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Tool Information
Reference Numbers
EDP Number8345589
EAN3603604109062
File Type Download
SNMM 866-NR2:T9415 — Line Drawing PDF Download
