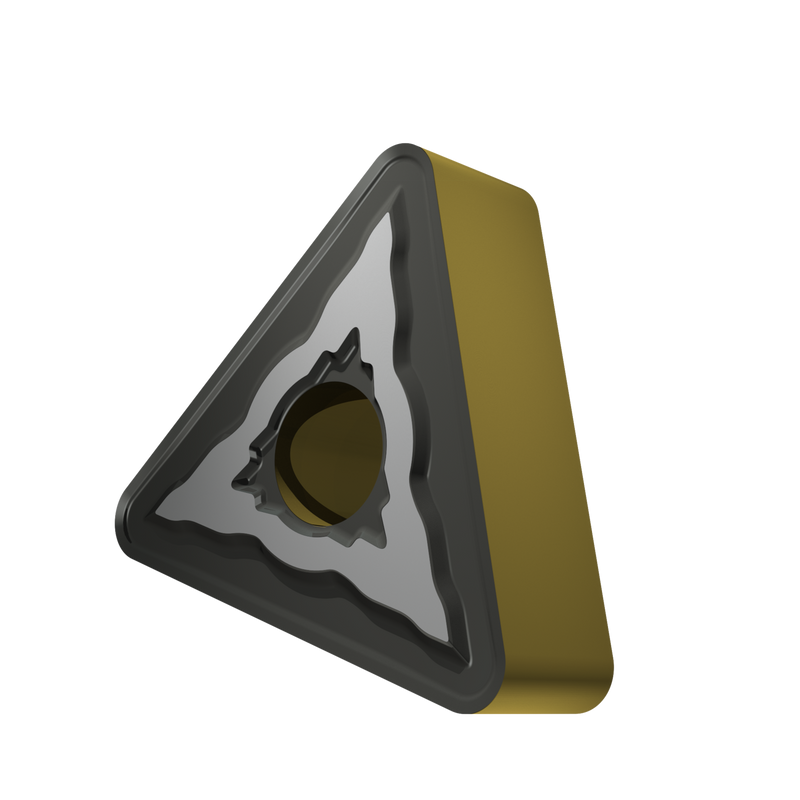

TNMG 333-NMR:T9415
TNMG 333-NMR:T9415

TNMG 333-NMR:T9415

UGC DOR8345596
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.26 CAD - $12.26 CAD
$12.26 CAD
$12.26 CAD - $12.26 CAD
$12.26 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 3/8", 3/16" d'épaisseur, rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, gamme ISO P05 - P30, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 333-NMR:T9415
Product Name (ISO)TNMG 160412E-NMR:T9415
GradeT9415
Chipbreaker (CBMD)RMN
Product Number8345596
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8345596
EAN3603604109130
Material Group Suitability
P — Steel and Cast Steel Usage principal
File Type Download
TNMG 333-NMR:T9415 — Line Drawing PDF Download
