TNMG 433-NMR:T9415
TNMG 433-NMR:T9415

TNMG 433-NMR:T9415

UGC DOR8345599
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.43 CAD - $16.43 CAD
$16.43 CAD
$16.43 CAD - $16.43 CAD
$16.43 CAD

Vendu en lots de : 10

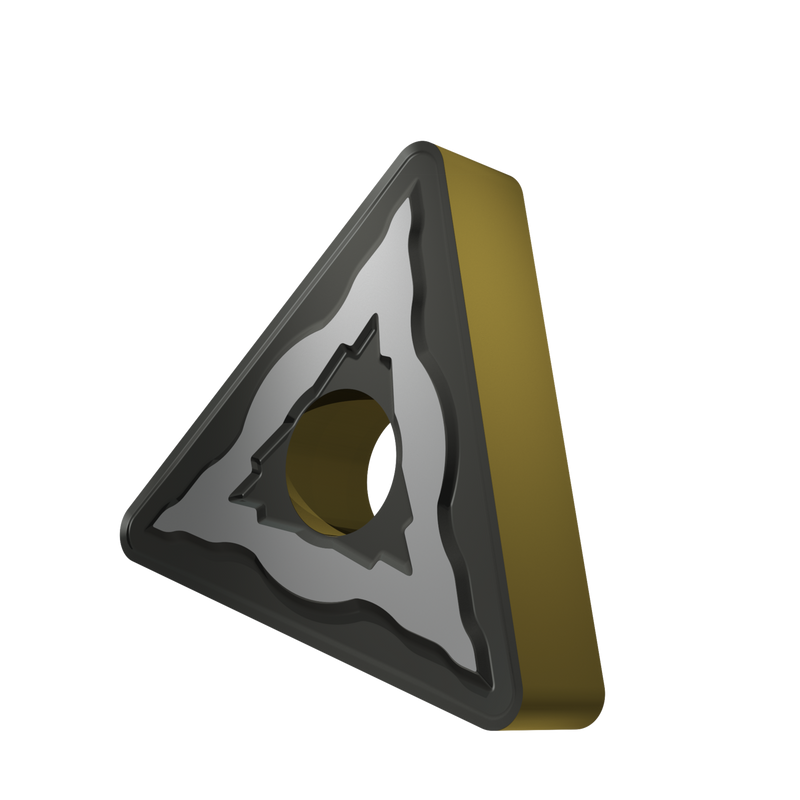

Plaquette négative double face, triangulaire avec un diamètre de cercle inscrit de 12,7 mm (1/2"), d'une épaisseur de 4,76 mm (3/16"), d'un rayon de bec de 1,19 mm (3/64") et d'une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage de finition à l'usinage lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 433-NMR:T9415
Product Name (ISO)TNMG 220412E-NMR:T9415
GradeT9415
Chipbreaker (CBMD)RMN
Product Number8345599
Product FamilyTNMG
Insert Geometry
Insert DesignGTNM
Insert Shape Code (SC)T - angulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8345599
EAN3603604109161
Material Group Suitability
P — Steel and Cast Steel Usage principal
File Type Download
TNMG 433-NMR:T9415 — Line Drawing PDF Download
