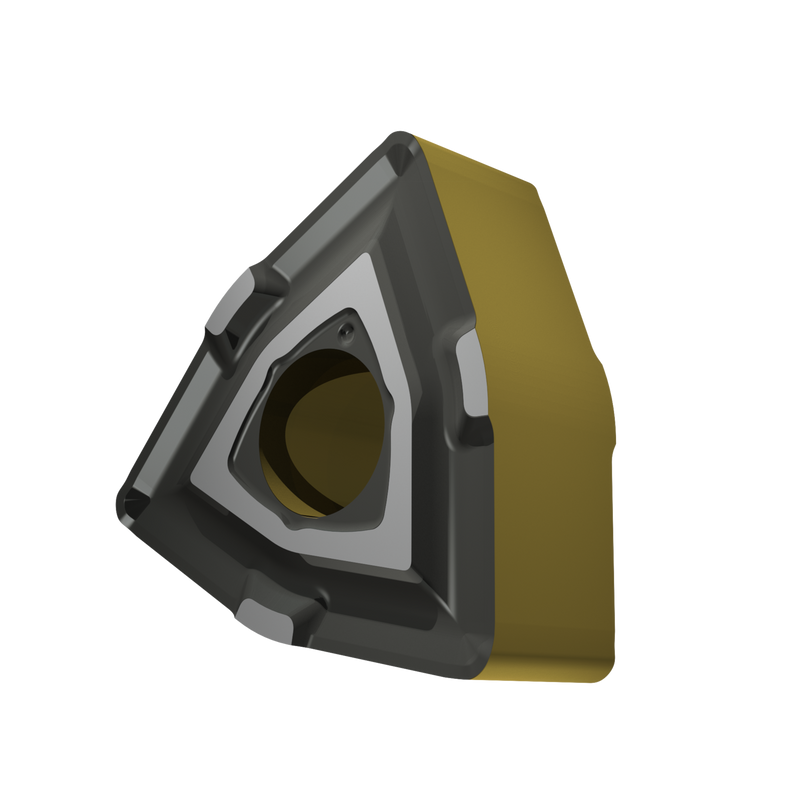

WNMG 332W-MR:T9415
WNMG 332W-MR:T9415

WNMG 332W-MR:T9415

UGC DOR8345610
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.29 CAD - $13.29 CAD
$13.29 CAD
$13.29 CAD - $13.29 CAD
$13.29 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon de 80° avec diamètre de cercle inscrit de 3/8", 3/16" d'épaisseur, rayon de bec de 1/32", précision d'indexage selon la classe de tolérance ISO M, brise-copeaux MR avec conception de lèvre de finition, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 332W-MR:T9415
Product Name (ISO)WNMG 060408W-MR:T9415
GradeT9415
Chipbreaker (CBMD)O-HR
Product Number8345610
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigonale
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8345610
EAN3603604109277
File Type Download
WNMG 332W-MR:T9415 — Line Drawing PDF Download
