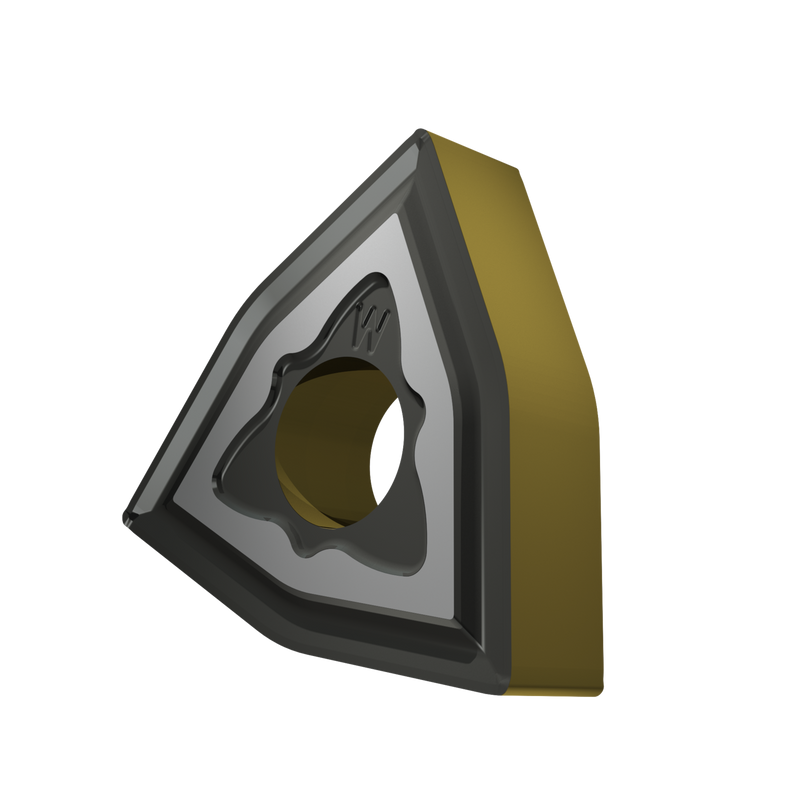

WNMG 431W-MR:T9415
WNMG 431W-MR:T9415

WNMG 431W-MR:T9415

UGC DOR8345615
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.14 CAD - $16.14 CAD
$16.14 CAD
$16.14 CAD - $16.14 CAD
$16.14 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, trigon de 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/64", précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux MR avec conception de lèvre de balayage (WIPER), en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 431W-MR:T9415
Product Name (ISO)WNMG 080404W-MR:T9415
GradeT9415
Chipbreaker (CBMD)L-HR
Product Number8345615
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigon (also known as a triple-star polygon or a trigonal W-star polygon)
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8345615
EAN3603604109321
File Type Download
WNMG 431W-MR:T9415 — Line Drawing PDF Download
