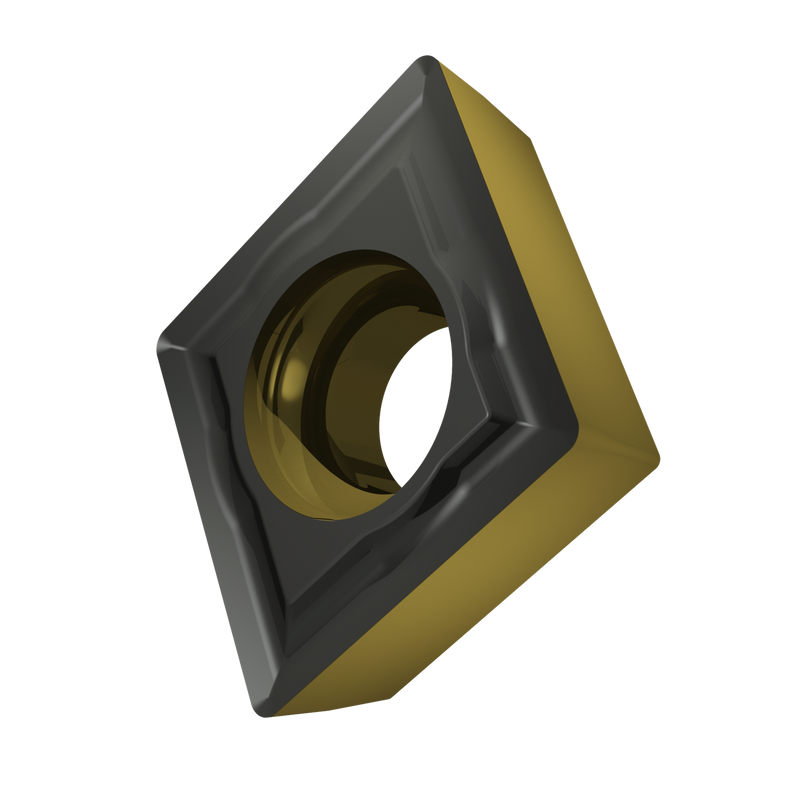

CCMT 2.521-NF2:T9415
CCMT 2.521-NF2:T9415

CCMT 2.521-NF2:T9415

UGC DOR8345923
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.19 CAD - $11.19 CAD
$11.19 CAD
$11.19 CAD - $11.19 CAD
$11.19 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 5/16", épaisseur 1/8", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NF2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 2.521-NF2:T9415
Product Name (ISO)CCMT 080304E-NF2:T9415
GradeT9415
Chipbreaker (CBMD)NF2
Product Number8345923
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle compris rhomboédrique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8345923
EAN3603604106559
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
CCMT 2.521-NF2:T9415 — Line Drawing PDF Download
