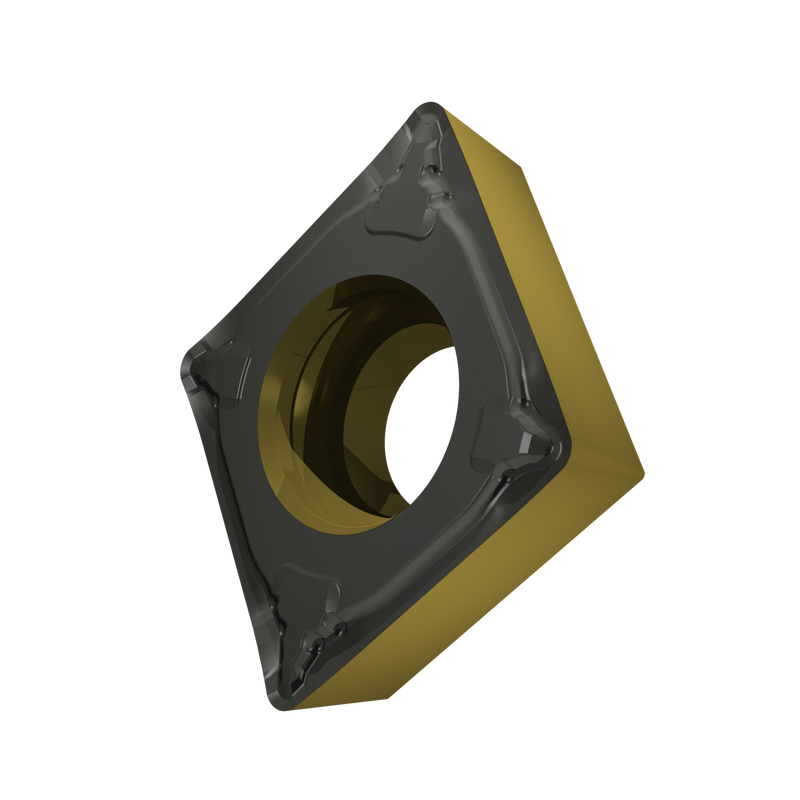

CCMT 433-UR:T9415
CCMT 433-UR:T9415

CCMT 433-UR:T9415

UGC DOR8345929
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.43 CAD - $17.43 CAD
$17.43 CAD
$17.43 CAD - $17.43 CAD
$17.43 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïdale 80° avec dépouille de 7°, diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux UR, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 433-UR:T9415
Product Name (ISO)CCMT 120412E-UR:T9415
GradeT9415
Chipbreaker (CBMD)VOUS
Product Number8345929
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8345929
EAN3603604106610
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
CCMT 433-UR:T9415 — Line Drawing PDF Download
