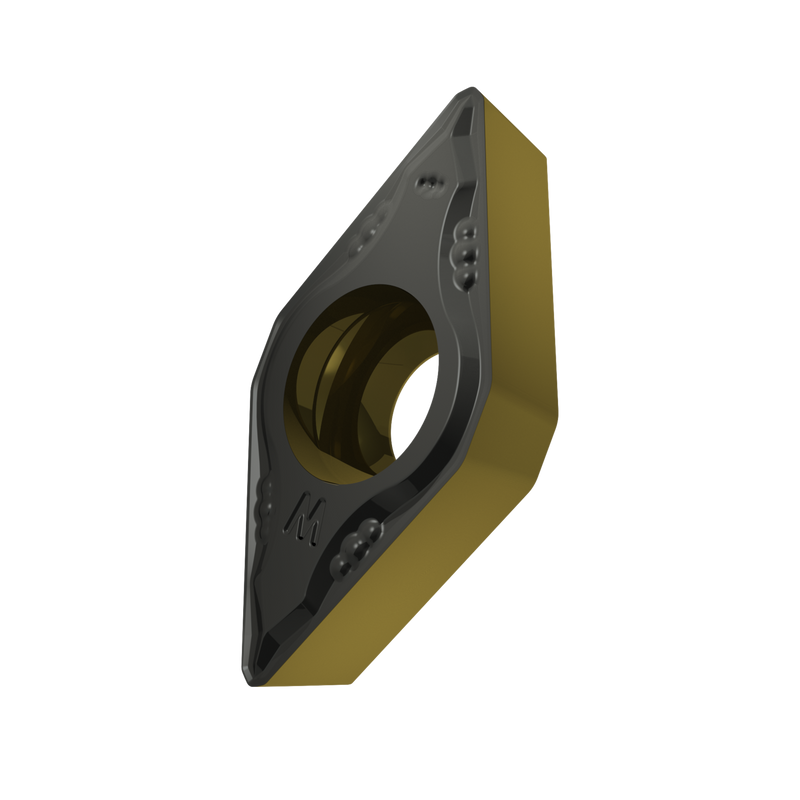

DCMX 32.51W-FM:T9415
DCMX 32.51W-FM:T9415

DCMX 32.51W-FM:T9415

UGC DOR8345943
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.29 CAD - $18.29 CAD
$18.29 CAD
$18.29 CAD - $18.29 CAD
$18.29 CAD

Vendu en lots de : 10

Plaquette positive de tournage de conception spéciale, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/64", précision de positionnement selon la classe de tolérance ISO-M, , brise-copeaux FM avec conception de bord WIPER, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMX 32.51W-FM:T9415
Product Name (ISO)DCMX 11T304W-FM:T9415
GradeT9415
Chipbreaker (CBMD)W-FM
Product Number8345943
Product FamilyDCMT
Insert Geometry
Insert DesignCMTD
Insert Shape Code (SC)D - angle interne de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8345943
EAN3603604106757
File Type Download
DCMX 32.51W-FM:T9415 — 2D Model DXF Download
DCMX 32.51W-FM:T9415 — Line Drawing PDF Download
