ECMT 2.522-FM2:T9415
ECMT 2.522-FM2:T9415

ECMT 2.522-FM2:T9415

UGC DOR8345946
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.86 CAD - $12.86 CAD
$12.86 CAD
$12.86 CAD - $12.86 CAD
$12.86 CAD

Vendu en lots de : 10

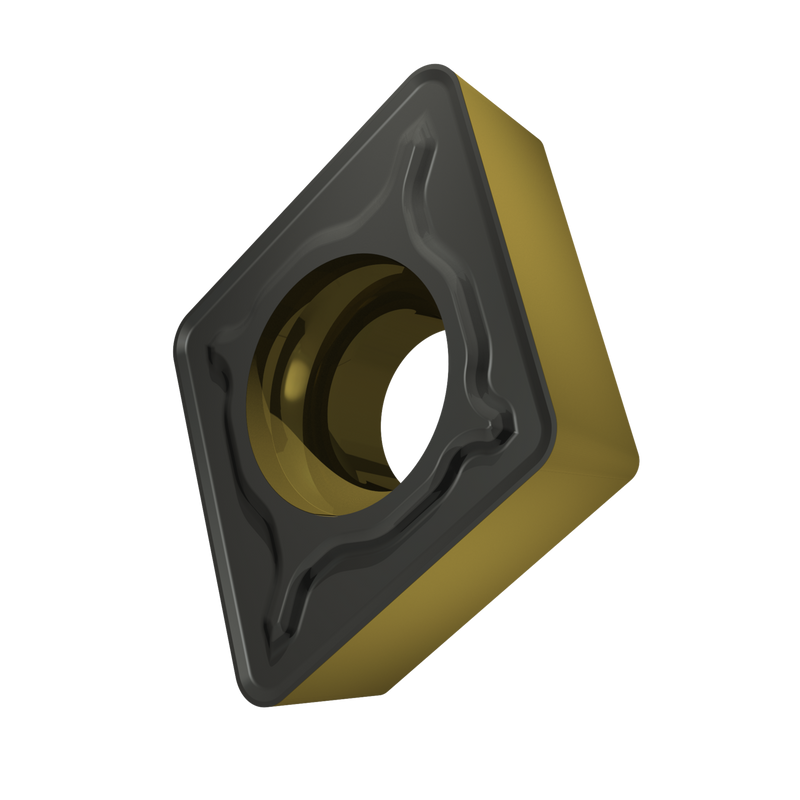

Plaquette de tournage positive simple face, rhomboïde 75° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)ECMT 2.522-FM2:T9415
Product Name (ISO)CEMT 080308E-FM2:T9415
GradeT9415
Chipbreaker (CBMD)FM2
Product Number8345946
Product FamilyCEMT

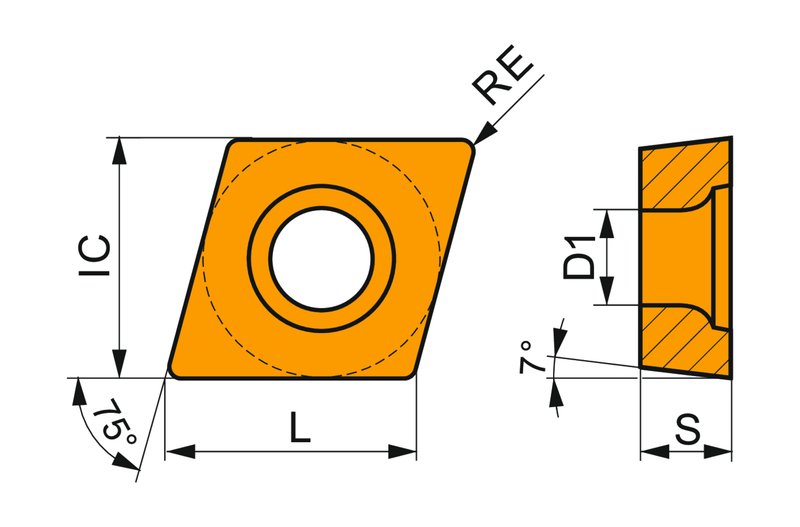

Insert Geometry
Insert DesignCEMT
Insert Shape Code (SC)E - angle rentrant de 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8345946
EAN3603604106788
File Type Download
ECMT 2.522-FM2:T9415 — Line Drawing PDF Download
