EPMT 1.81.50.5-NF2:T9415
EPMT 1.81.50.5-NF2:T9415

EPMT 1.81.50.5-NF2:T9415

UGC DOR8345947
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.61 CAD - $10.61 CAD
$10.61 CAD
$10.61 CAD - $10.61 CAD
$10.61 CAD

Vendu en lots de : 10

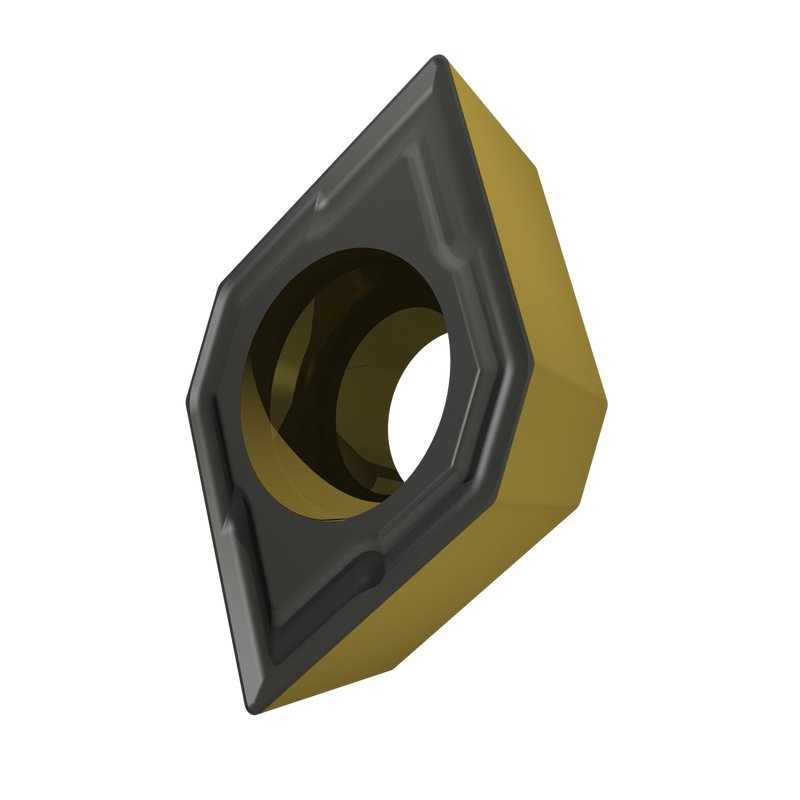

Plaquette de tournage positive simple face, rhomboïde 75° avec dépouille 11°, diamètre du cercle inscrit de 7/32, épaisseur de 3/32", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NF2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)EPMT 1.81.50.5-NF2:T9415
Product Name (ISO)EPMT 050202E-NF2:T9415
GradeT9415
Chipbreaker (CBMD)NF2
Product Number8345947
Product FamilyGEPM

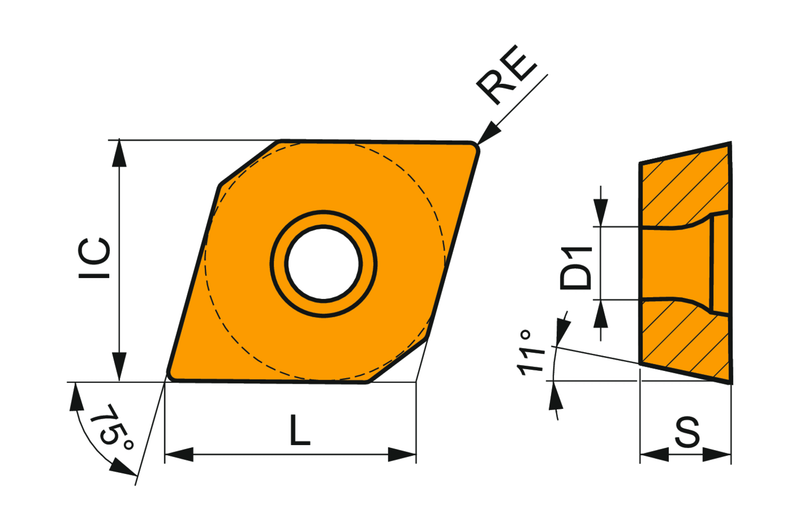

Insert Geometry
Insert DesignEPMT
Insert Shape Code (SC)F - Angle inclus en losange de 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number8345947
EAN3603604106795
File Type Download
EPMT 1.81.50.5-NF2:T9415 — Line Drawing PDF Download
