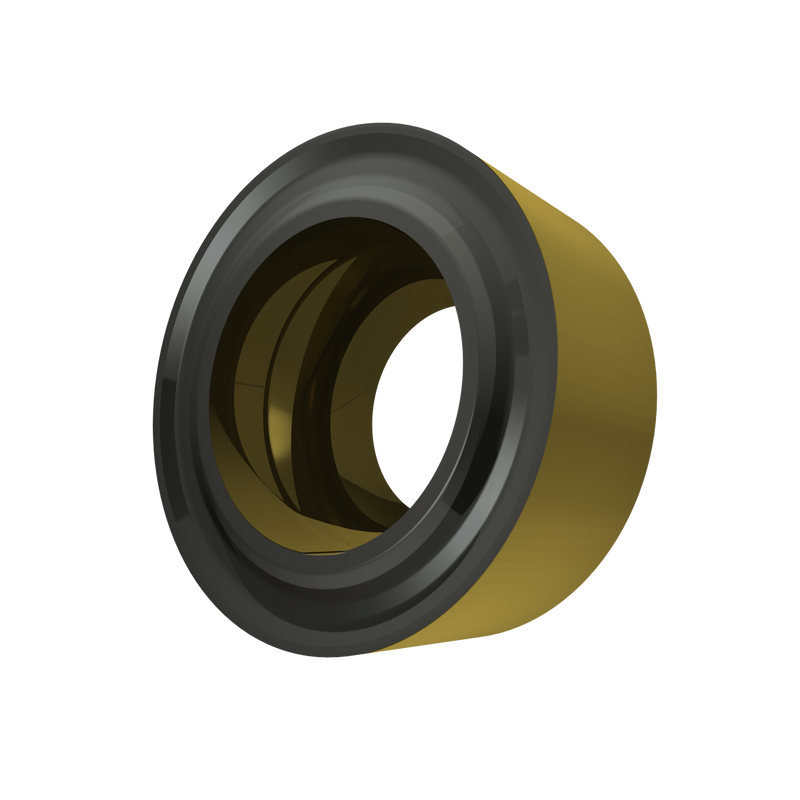

RCMT 10T3MOE-FM:T9415
RCMT 10T3MOE-FM:T9415

RCMT 10T3MOE-FM:T9415

UGC DOR8345948
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.83 CAD - $12.83 CAD
$12.83 CAD
$12.83 CAD - $12.83 CAD
$12.83 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, ronde avec dépouille de 7°, diamètre de 10 mm, épaisseur de 3,97 mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05-P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOE-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8345948
Product FamilyCMAR
Insert Geometry
Insert DesignCRMT
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Tool Information
Reference Numbers
EDP Number8345948
EAN3603604106801
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
RCMT 10T3MOE-FM:T9415 — Line Drawing PDF Download
