RCMT 0602MOE-FM:T9415
RCMT 0602MOE-FM:T9415

RCMT 0602MOE-FM:T9415

UGC DOR8345950
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.47 CAD - $10.47 CAD
$10.47 CAD
$10.47 CAD - $10.47 CAD
$10.47 CAD

Vendu en lots de : 10

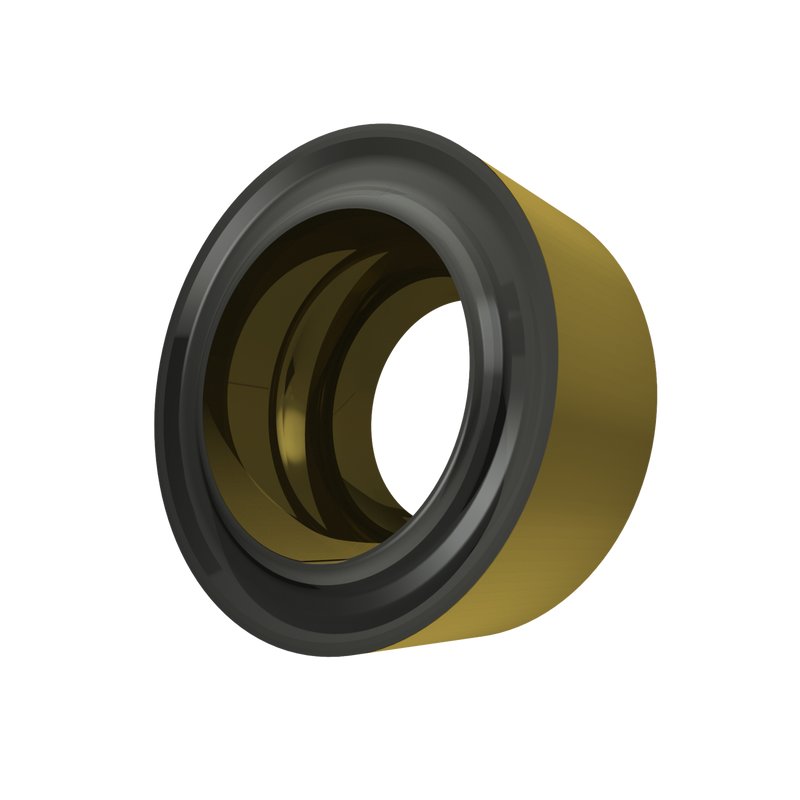

Plaquette positive simple face, ronde, avec dépouille de 7°, d'un diamètre de 6 mm, d'une épaisseur de 2,38 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 -P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 0602MOE-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8345950
Product FamilyCRSM
Insert Geometry
Insert DesignCMRT
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Tool Information
Reference Numbers
EDP Number8345950
EAN3603604106825
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
RCMT 0602MOE-FM:T9415 — 2D Model DXF Download
RCMT 0602MOE-FM:T9415 — Line Drawing PDF Download
