RCMT 0803MOE-FM:T9415
RCMT 0803MOE-FM:T9415

RCMT 0803MOE-FM:T9415

UGC DOR8345952
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.61 CAD - $11.61 CAD
$11.61 CAD
$11.61 CAD - $11.61 CAD
$11.61 CAD

Vendu en lots de : 10

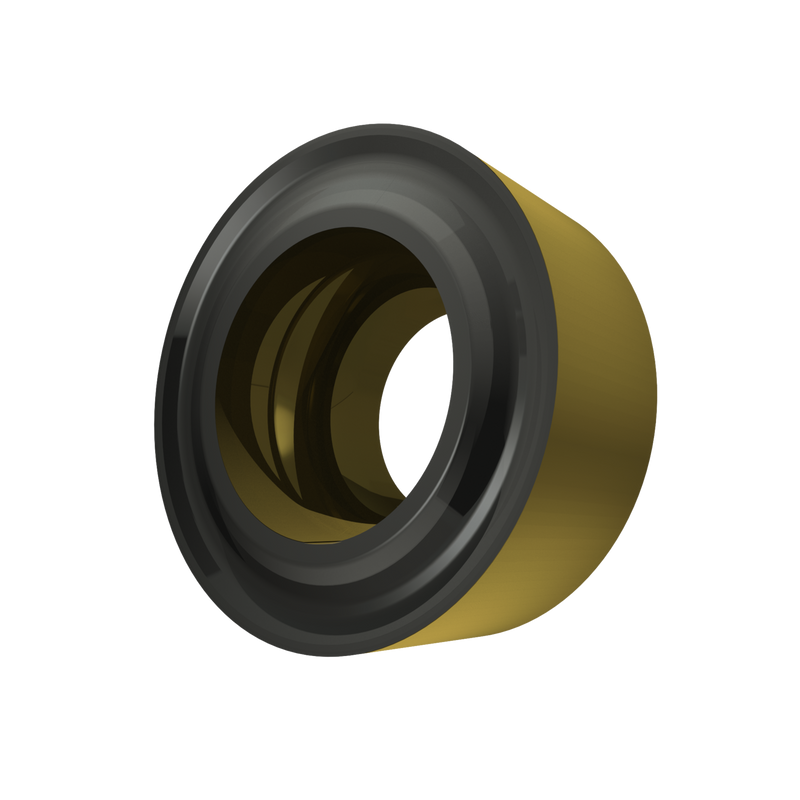

Plaquette de tournage positive simple face, ronde avec un angle de dépouille de 7°, un diamètre de 8 mm, une épaisseur de 3,18 mm, une précision d'indexage selon la classe de tolérance ISO-M, un brise-copeaux FM avec des arêtes de coupe arrondies, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05-P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 0803MOE-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8345952
Product FamilyRCMT
Insert Geometry
Insert DesignRCMT
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Tool Information
Reference Numbers
EDP Number8345952
EAN3603604106849
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
RCMT 0803MOE-FM:T9415 — 2D Model DXF Download
RCMT 0803MOE-FM:T9415 — Line Drawing PDF Download
