RCMX 1204MOS-321:T9415
RCMX 1204MOS-321:T9415

RCMX 1204MOS-321:T9415

UGC DOR8345955
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.36 CAD - $14.36 CAD
$14.36 CAD
$14.36 CAD - $14.36 CAD
$14.36 CAD

Vendu en lots de : 10

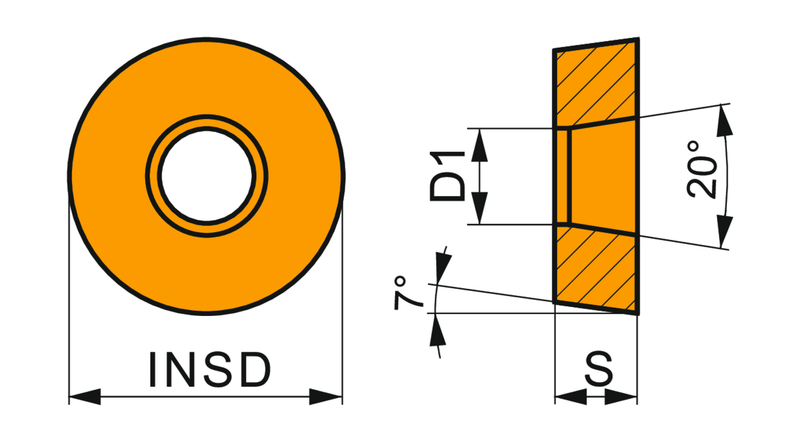

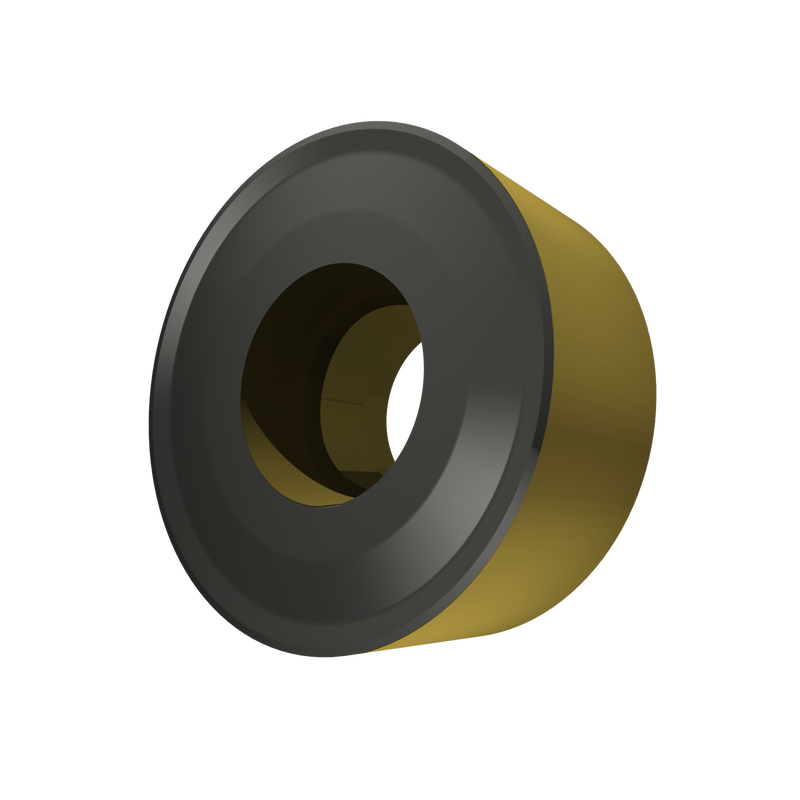

Plaquette de tournage positive de conception spéciale, ronde avec dépouille de 7°, diamètre de 12 mm, épaisseur de 4,76 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux 321 avec arêtes de coupe arrondies avec facette, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 -P30, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 1204MOS-321:T9415
GradeT9415
Chipbreaker (CBMD)321
Product Number8345955
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Tool Information
Reference Numbers
EDP Number8345955
EAN3603604106870
File Type Download
RCMX 1204MOS-321:T9415 — 2D Model DXF Download
RCMX 1204MOS-321:T9415 — Line Drawing PDF Download
