SCMT 432-FM:T9415
SCMT 432-FM:T9415

SCMT 432-FM:T9415

UGC DOR8345962
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.93 CAD - $19.93 CAD
$19.93 CAD
$19.93 CAD - $19.93 CAD
$19.93 CAD

Vendu en lots de : 10

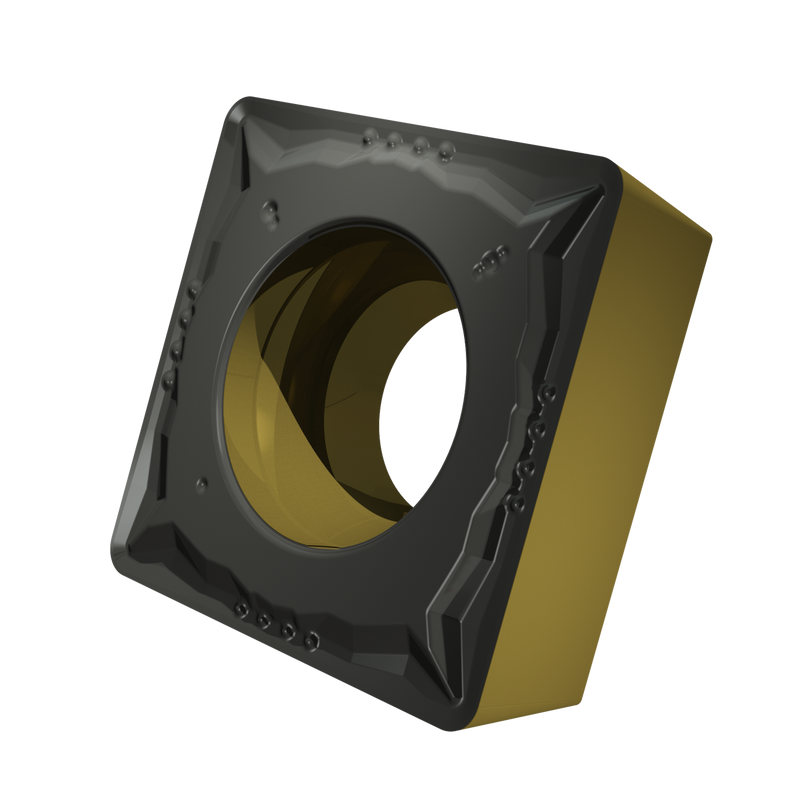

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 12,7 mm (1/2 po), épaisseur de 4,76 mm (3/16 po), rayon de bec de 0,79 mm (1/32 po) et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 432-FM:T9415
Product Name (ISO)SCMT 120408E-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8345962
Product FamilySCMT

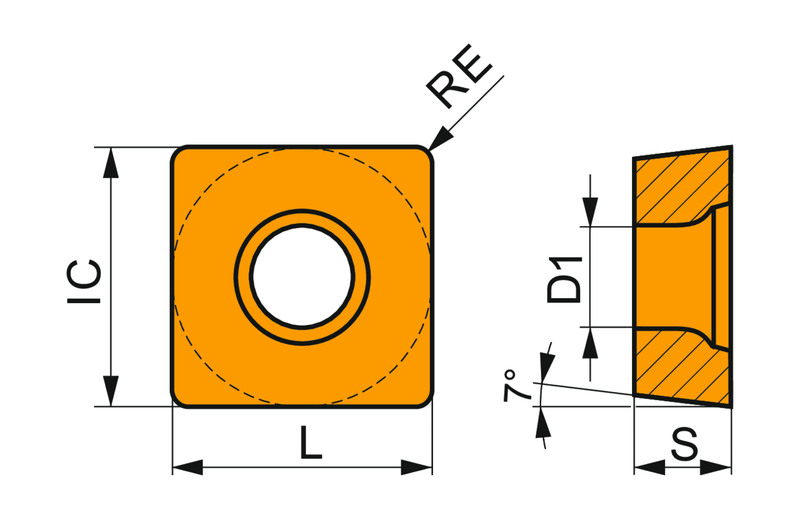

Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)S - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8345962
EAN3603604106948
File Type Download
SCMT 432-FM:T9415 — 2D Model DXF Download
SCMT 432-FM:T9415 — Line Drawing PDF Download
