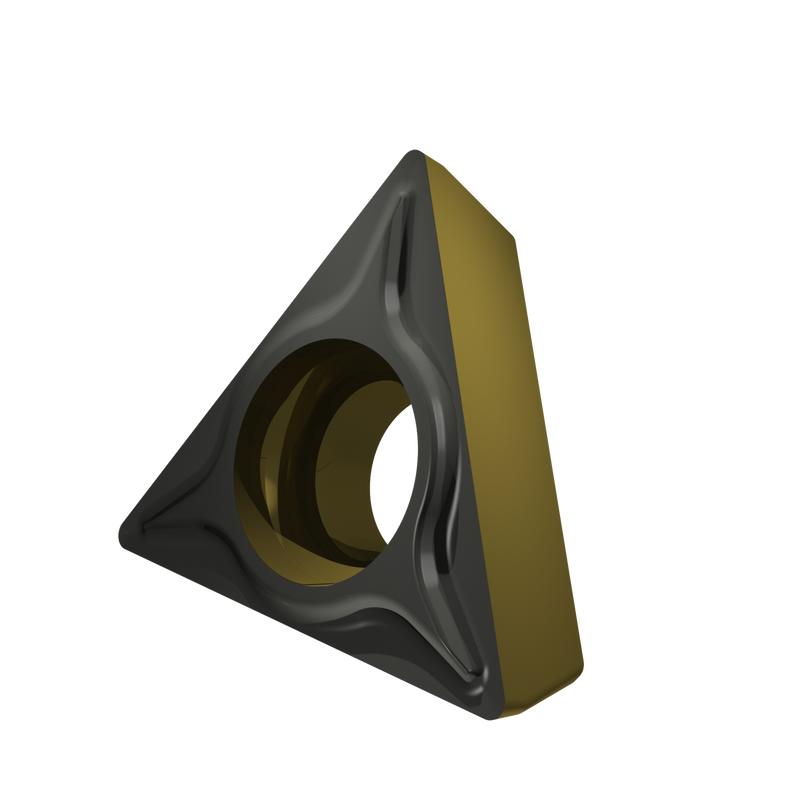

TCMT 1.21.20.5-FF2:T9415
TCMT 1.21.20.5-FF2:T9415

TCMT 1.21.20.5-FF2:T9415

UGC DOR8345966
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.57 CAD - $9.57 CAD
$9.57 CAD
$9.57 CAD - $9.57 CAD
$9.57 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 5/32", épaisseur de 5/64", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 1.21.20.5-FF2:T9415
Product Name (ISO)TCMT 06T102E-FF2:T9415
GradeT9415
Chipbreaker (CBMD)FF2
Product Number8345966
Product FamilyTCMT
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - angulaire, angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.078"
Insert Thickness — mm (S)1.98 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number8345966
EAN3603604106986
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
TCMT 1.21.20.5-FF2:T9415 — Line Drawing PDF Download
