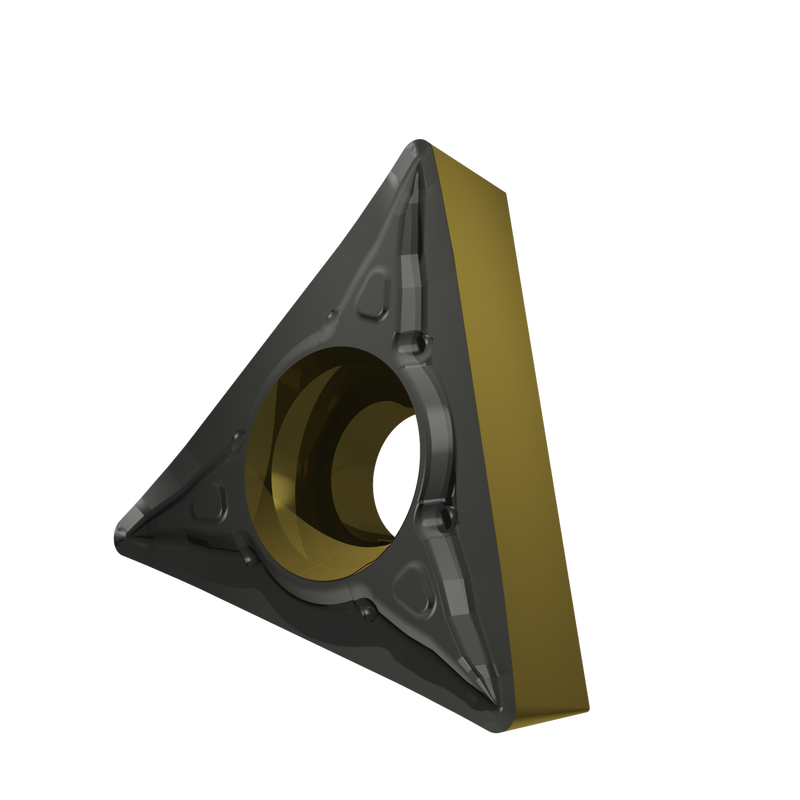

TCMT 21.51-UR:T9415
TCMT 21.51-UR:T9415

TCMT 21.51-UR:T9415

UGC DOR8345978
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux UR, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO P05 - P30, pour l'usinage léger à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 21,51-UR:T9415
Product Name (ISO)TCMT 110204E-UR:T9415
GradeT9415
Chipbreaker (CBMD)VOUS
Product Number8345978
Product FamilyCTTM
Insert Geometry
Insert DesignCTFM
Insert Shape Code (SC)T - triangulaire avec un angle de 60° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8345978
EAN3603604110105
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
TCMT 21.51-UR:T9415 — Line Drawing PDF Download
