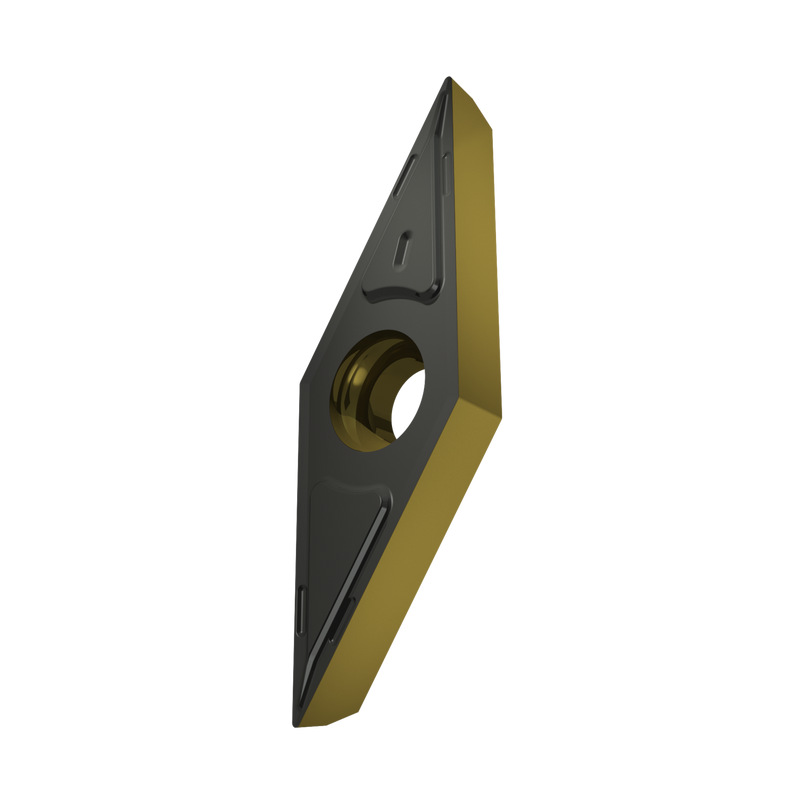

VCGT 2.520.5-FF2:T9415
VCGT 2.520.5-FF2:T9415

VCGT 2.520.5-FF2:T9415

UGC DOR8345983
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.83 CAD - $21.83 CAD
$21.83 CAD
$21.83 CAD - $21.83 CAD
$21.83 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux FF2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.520.5-FF2:T9415
Product Name (ISO)VCGT 130302E-FF2:T9415
GradeT9415
Chipbreaker (CBMD)FF2
Product Number8345983
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number8345983
EAN3603604110150
File Type Download
VCGT 2.520.5-FF2:T9415 — Line Drawing PDF Download
