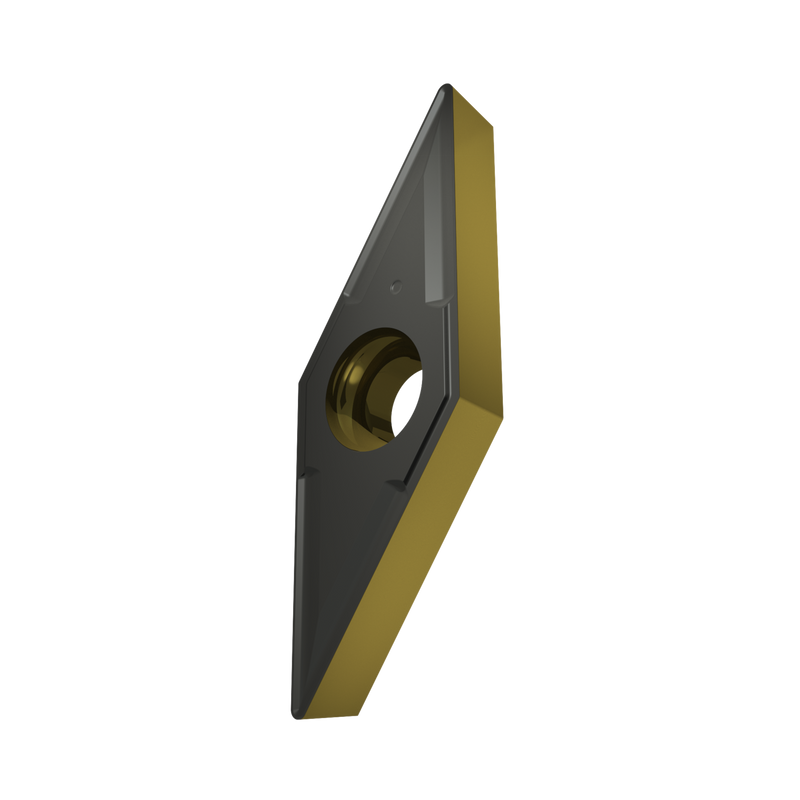

VCGT 2.521-NF2:T9415
VCGT 2.521-NF2:T9415

VCGT 2.521-NF2:T9415

UGC DOR8345985
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.64 CAD - $20.64 CAD
$20.64 CAD
$20.64 CAD - $20.64 CAD
$20.64 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale à 35° avec dépouille de 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO- G, brise-copeaux NF2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.521-NF2:T9415
Product Name (ISO)VCGT 130304E-NF2:T9415
GradeT9415
Chipbreaker (CBMD)NF2
Product Number8345985
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle au sommet de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8345985
EAN3603604110174
File Type Download
VCGT 2.521-NF2:T9415 — Line Drawing PDF Download
