VCGT 2.522-NF2:T9415
VCGT 2.522-NF2:T9415

VCGT 2.522-NF2:T9415

UGC DOR8345987
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.64 CAD - $20.64 CAD
$20.64 CAD
$20.64 CAD - $20.64 CAD
$20.64 CAD

Vendu en lots de : 10

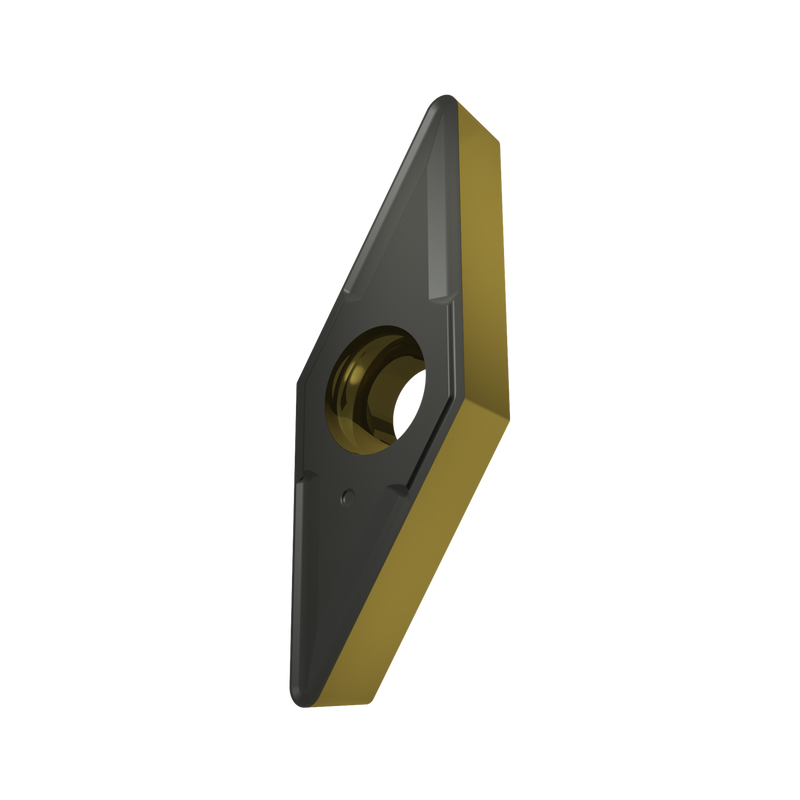

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit 5/16", épaisseur 1/8", rayon de bec 1/32" et précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux NF2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage de finition à semi-finition

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.522-NF2:T9415
Product Name (ISO)VCGT 130308E-NF2:T9415
GradeT9415
Chipbreaker (CBMD)NF2
Product Number8345987
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8345987
EAN3603604110198
File Type Download
VCGT 2.522-NF2:T9415 — Line Drawing PDF Download
