WCMT 32.51-FM:T9415
WCMT 32.51-FM:T9415

WCMT 32.51-FM:T9415

UGC DOR8345992
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.57 CAD - $19.57 CAD
$19.57 CAD
$19.57 CAD - $19.57 CAD
$19.57 CAD

Vendu en lots de : 10

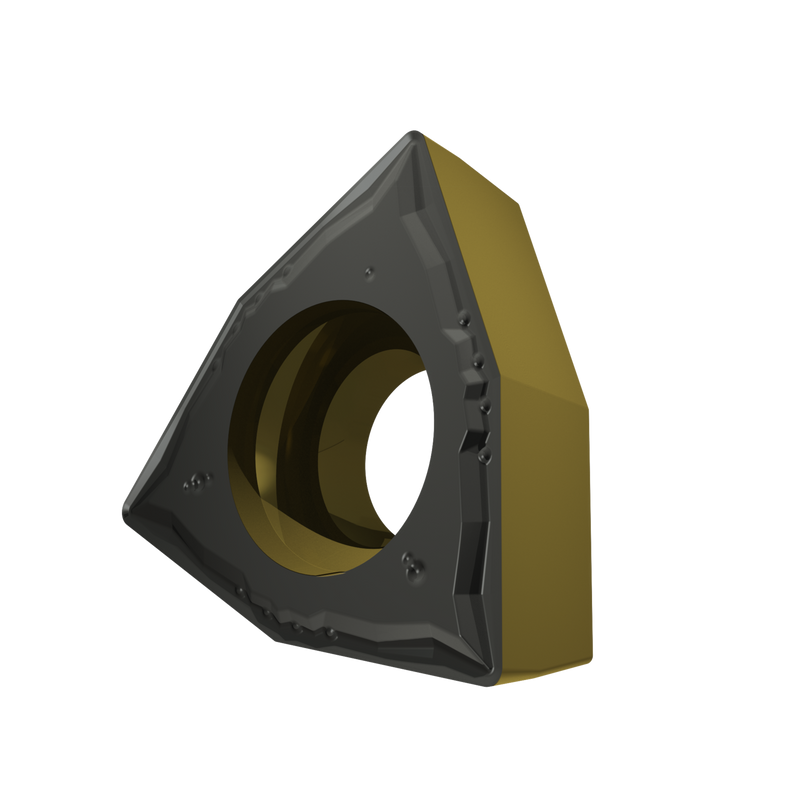

Plaquette de tournage positive simple face, trigon 80° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 5/32", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WCMT 32.51-FM:T9415
Product Name (ISO)WCMT 06T304E-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8345992
Product FamilyWCMT

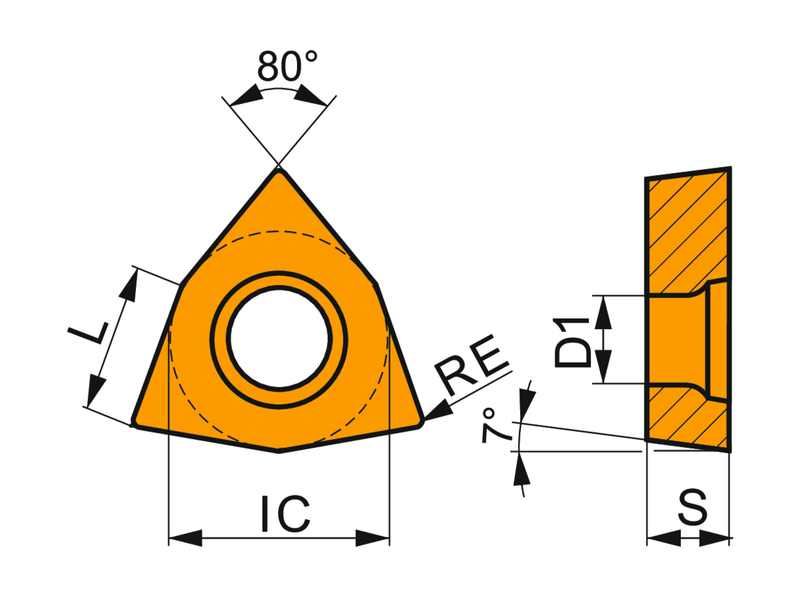

Insert Geometry
Insert DesignCMTP
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8345992
EAN3603604110242
File Type Download
WCMT 32.51-FM:T9415 — Line Drawing PDF Download
