WCMT 432-FM:T9415
WCMT 432-FM:T9415

WCMT 432-FM:T9415

UGC DOR8345994
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.26 CAD - $24.26 CAD
$24.26 CAD
$24.26 CAD - $24.26 CAD
$24.26 CAD

Vendu en lots de : 10

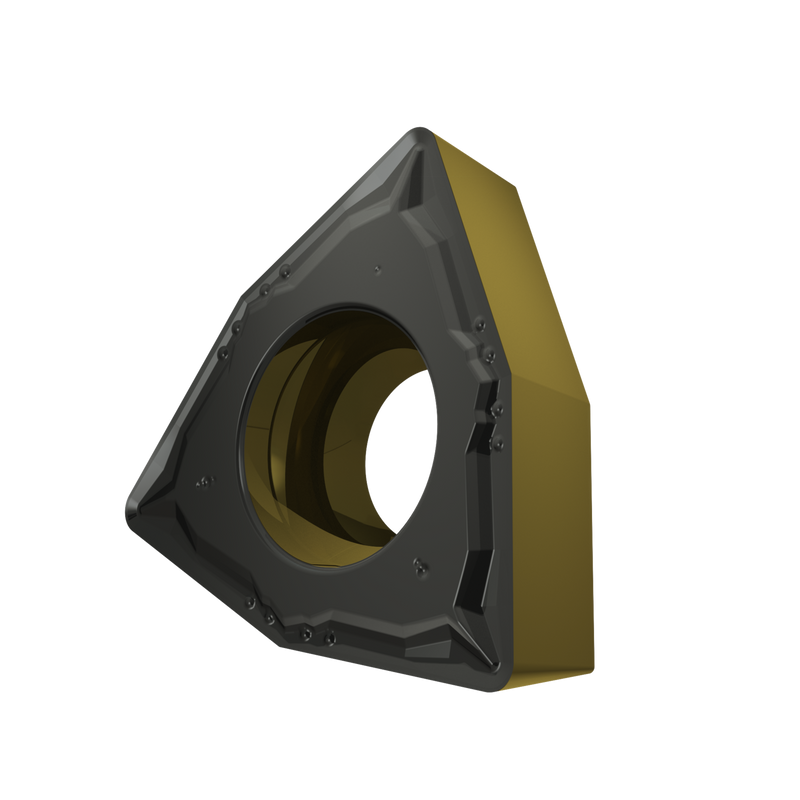

Plaquette positive simple face, trigon 80° avec dépouille 7°, diamètre du cercle inscrit 1/2", épaisseur 3/16", rayon de bec 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WCMT 432-FM:T9415
Product Name (ISO)WCMT 080408E-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8345994
Product FamilyCMTWC

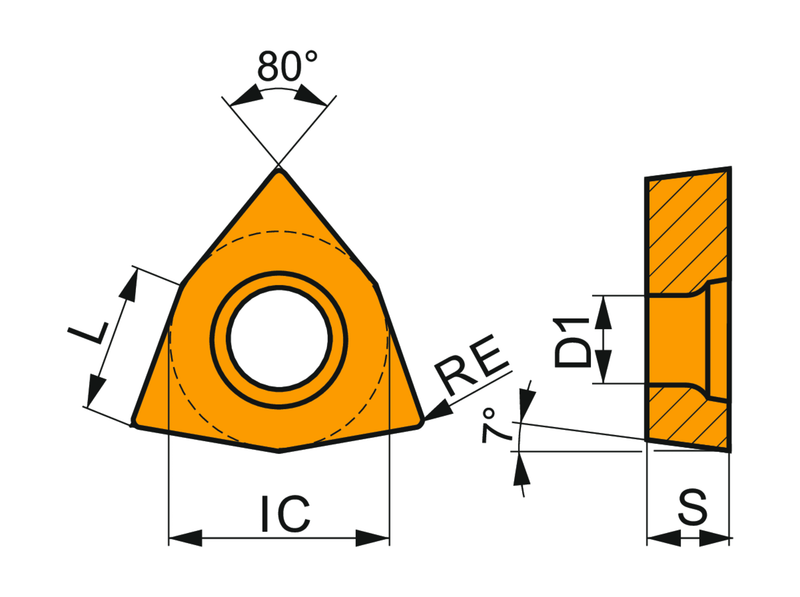

Insert Geometry
Insert DesignWCMT
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8345994
EAN3603604110266
File Type Download
WCMT 432-FM:T9415 — Line Drawing PDF Download
